Sourcing High-Performance LRPC Strand Wire: The Definitive Technical & Procurement Guide
Industry Technical & Sourcing Guide
In modern structural engineering and mega-infrastructure construction, Low Relaxation Pre-stressed Concrete LRPC strand wire (commonly referred to globally as PC strand) is the primary tensile element that enables long-span bridges, slender architectural slabs, earthquake-resilient viaducts, and containment structures.
As global infrastructure investment accelerates across North America, the Middle East, Southeast Asia, and Europe, structural engineers and international EPC contractors are increasingly turning to India’s primary steel producers for certified, defect-free prestressing steel.
At Newton Exports, we streamline the bulk supply of high-grade LRPC strands, post-tensioning anchorages, and high-tensile wire products sourced directly from India’s top primary mills – including Tata Wiron (Tata Steel), Usha Martin, and JSW Steel.
What is LRPC Strand Wire? Anatomy & Metallurgy
An LRPC strand is a multi-wire structural tendon manufactured from cold-drawn, high-carbon steel wire rods (typically SAE 1080 / SAE 1085 grades with carbon content 0.75% – 0.85%).
The most common structural configuration is the 7-Wire Strand, comprising:
One Central King Wire (Core Wire): Straight central wire slightly larger in diameter (typically ≥2.5% larger) than surrounding wires to ensure the outer wires seat tightly under stress.
Six Outer Helical Wires: Uniformly stranded with a tight lay length (12 to 16 times the nominal strand diameter).
Why "Low Relaxation" Matters in Civil Engineering:
After cold drawing and stranding, the wire is subjected to continuous thermo-mechanical stabilization under
simultaneous high mechanical tension and controlled induction heating (~350°C to 400°C). This process
realigns crystal lattice dislocations, resulting in an isothermal 1000-hour stress relaxation loss of under 2.5% at
70% breaking load (compared to 7%–9% in traditional stress-relieved wires), an elastic proof load exceeding
90% of ultimate tensile strength (UTS), and exceptional resistance to cyclic dynamic fatigue.
- Low Isothermal Stress Relaxation: Total prestress loss under constant strain at 1,000 hours (20°C at 70% breaking load) is less than 2.5% compared to 7% – 8% for traditional stress-relieved wire.
- High Elastic Proof Limit: Yield point exceeds 90% of ultimate tensile strength.
- High Fatigue Strength: Excellent resistance to cyclic dynamic loads from heavy rail and vehicular traffic.
2. International Specifications & Mechanical Property Matrix
Procurement teams and design consultants specify LRPC strands based on internationally recognized testing standards. Indian primary manufacturers produce strands fully certified across major global codes:
| Technical Parameter | ASTM A416 / A416M (Grade 270) | EN 10138-3 (Y1860S7) | IS 14268:2022 (Class 2) |
|---|---|---|---|
| Nominal Diameters | 12.7 mm (0.5") / 15.24 mm (0.6") | 12.5 mm / 15.2 mm / 15.7 mm | 12.7 mm / 15.2 mm |
| Nominal Steel Area | 98.7 mm² / 140.0 mm² | 93.0 mm² / 139.0 mm² | 98.7 mm² / 140.0 mm² |
| Nominal Unit Weight | 775 g/m / 1099 g/m | 730 g/m / 1090 g/m | 775 g/m / 1100 g/m |
| Min. Breaking Load (UTS) | 183.7 kN / 260.7 kN (1860 MPa) | 173.0 kN / 259.0 kN (1860 MPa) | 183.7 kN / 260.7 kN (1860 MPa) |
| 0.2% Proof Load (Yield) | ≥ 90% of Specified Min. UTS | ≥ 88% to 90% of Fm | ≥ 90% of Specified Min. UTS |
| Total Elongation (Agt) | ≥ 3.5% at maximum load | ≥ 3.5% at maximum load | ≥ 3.5% at gauge length |
| 1,000-Hour Stress Relaxation | ≤ 2.5% (initial load 70% UTS) | ≤ 2.5% (initial load 70% UTS) | ≤ 2.5% (initial load 70% UTS) |
| Modulus of Elasticity (E) | 195 ± 10 GPa | 195 ± 10 GPa | 195 ± 10 GPa |
3. Product Classifications & Specialized Engineering Variants
Modern engineering projects mandate varied surface finishes and protective coatings depending on environmental exposure and post-tensioning techniques:

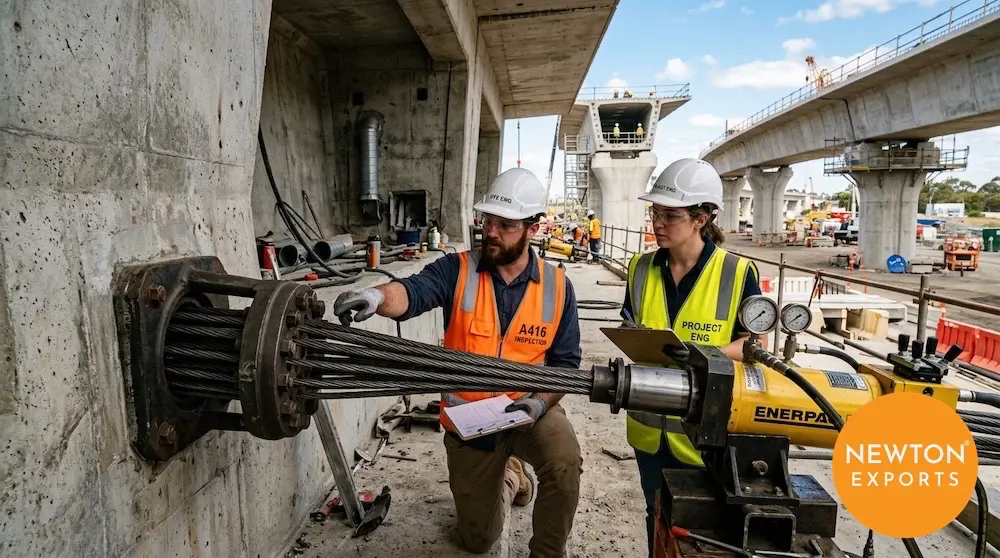

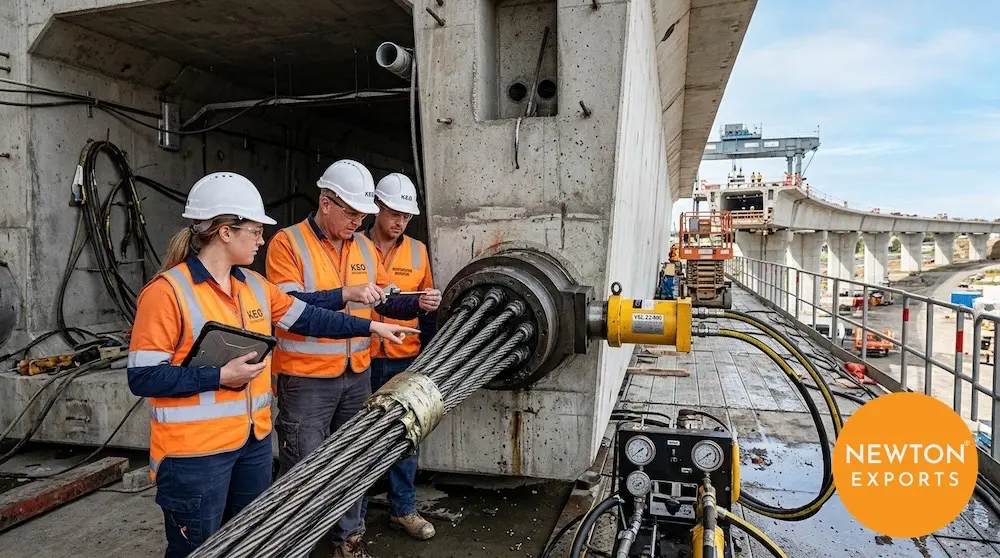

- Bare 7-Wire LRPC Strand: The industry standard for bonded post-tensioned bridges, viaducts, and precast pretensioned beams. The strand is pulled through cast-in ducts and permanently locked with high-strength cementitious grout.

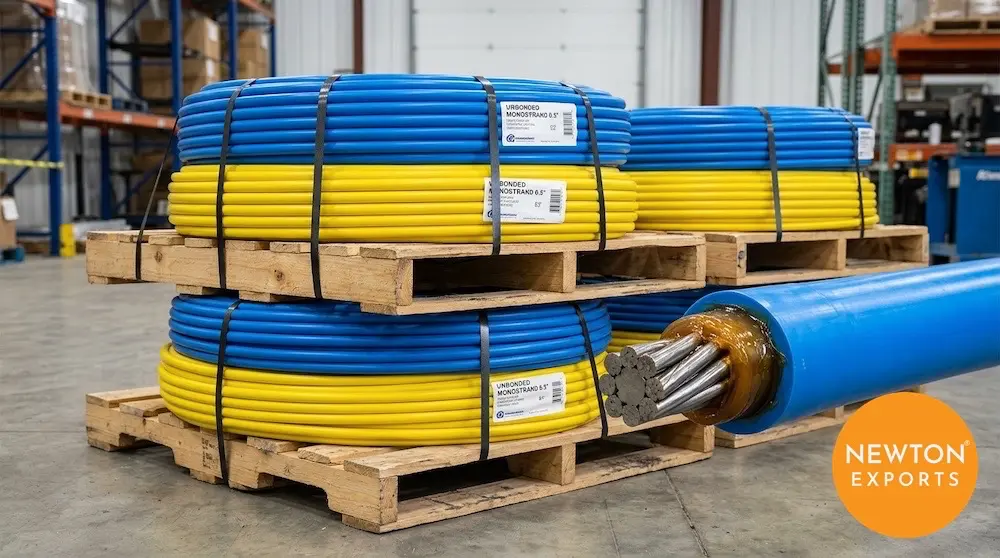

- Unbonded HDPE-Sheathed Monostrand: Encapsulated in continuous rust-inhibiting microcrystalline petroleum wax and extruded with a seamless high-density polyethylene (HDPE) sheath. Ideal for two-way post-tensioned building slabs, parking structures, and ground anchors.
- Indented Prestressing Strand: Cold-formed with continuous surface indentations to maximize mechanical bond in short pretensioned precast products, such as railway sleepers, hollow-core slabs, and utility poles.
- Epoxy-Coated & Filled Strand (Flo-Bond): Fusion-bonded epoxy coating providing impenetrable corrosion resistance for harsh marine bridge piers, coastal splash zones, and chemical containment structures.
- Galvanized Stay Cable Strands: Hot-dip galvanized high-tensile wires bundled for stay cables on suspension and cable-stayed bridge structures.
4. Global Trade Trends & Market Dynamics (HS Code: 73121030)
An analysis of international import shipments under HS Code 73121030 highlights key shifts across the prestressing steel trade:
- High-Volume Procurement Corridors: Cross-border trade data shows continuous demand across Southeast Asia (Vietnam, Indonesia, Malaysia, Philippines), North America, and Southern Africa for infrastructure expansion.
- Dominant Standard Batch Orders: High-volume import consignments predominantly demand 12.7 mm (0.5″) and 15.24 mm (0.6″) Grade 270 strands shipped in 150 to 250 metric ton multi-container lots.
Supply Chain Realignment toward India: Overseas procurement heads are increasingly shifting volume allocations to Tier-1 Indian integrated mills to benefit from stable lead times, full metallurgical traceability, and favorable trade terms.
5. Why Source LRPC Strand Wire from India? The Tier-1 Primary Mill Advantage
India is one of the world’s most competitive manufacturing hubs for high-tensile prestressing steel, anchored by virgin iron-ore based primary steelmaking, modern automated wire drawing facilities, and rigorous QA regimes. The products from India are tested under stringent criteria and meet ASTM, EN and IS standards while also being compliant to BIS norms.
Tata Wiron (Tata Steel)
Usha Martin Limited
JSW Steel
6. Related Products Sourced in Bulk by International Buyers
EPC contractors and stockists frequently consolidate their LRPC orders with compatible post-tensioning hardware and companion products:

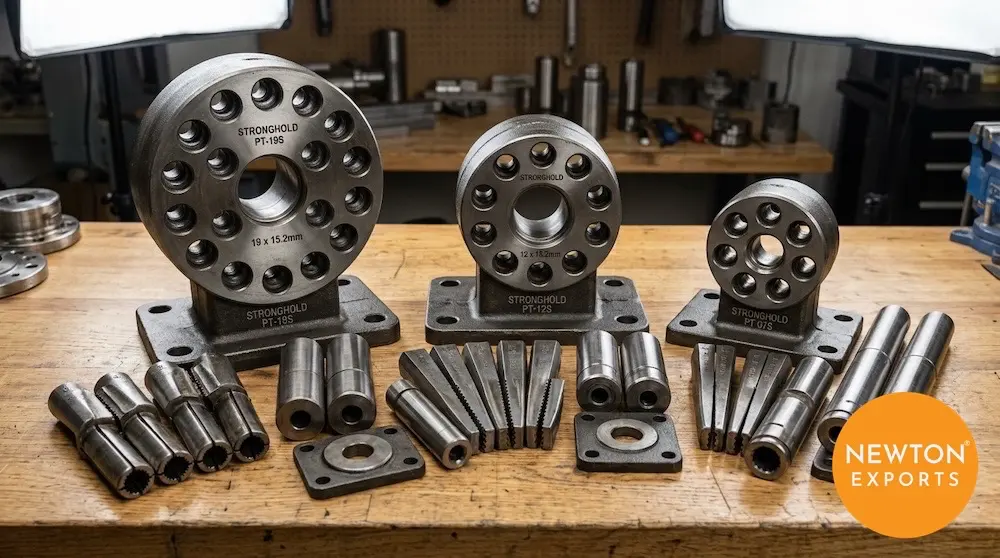

- Post-Tensioning Anchorage Systems: Multi-hole cast steel anchor heads (for 7, 12, 19, 27, and 31 strands), 3-piece heat-treated alloy steel wedges, and cast iron bearing plates.
- Prestressing High-Tensile Wire: Plain and indented PC wire (3.0 mm to 9.0 mm) for concrete railway sleepers and precast prestressed pipes.
- Ducts & Grouting Accessories: Corrugated galvanized steel round/flat ducts, plastic HDPE ducts, couplers, and grout vent valves.
- Hydraulic Tensioning Jacks & Pumps: Front-pulling monostrand jacks, multi-strand stressing jacks, and synchronized digital electric hydraulic pump units.
- High-Carbon Wire Rods: SAE 1080 / 1085 prime hot-rolled wire rod coils (5.5 mm to 13.0 mm) for captive wire drawing operations.
7. Export Packaging, Quality Assurance & Container Loading

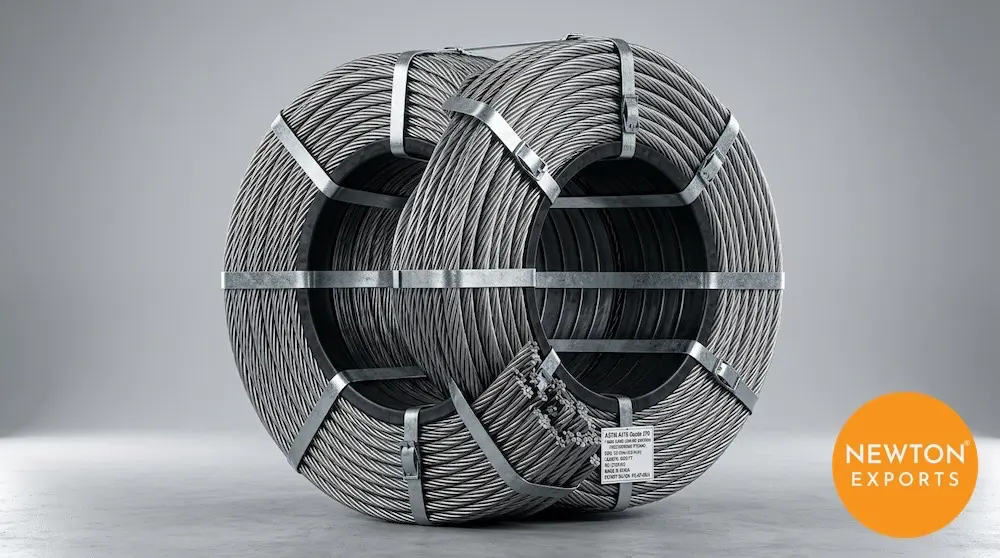

- Protective Coil Packaging: Master coils (2.5 to 3.5 Metric Tons) secured with 32 mm heavy-gauge steel straps, wrapped in multi-layer Vapor Corrosion Inhibitor (VCI) film, covered with woven HDPE waterproof fabric, and seated on heavy-duty wooden saddles.

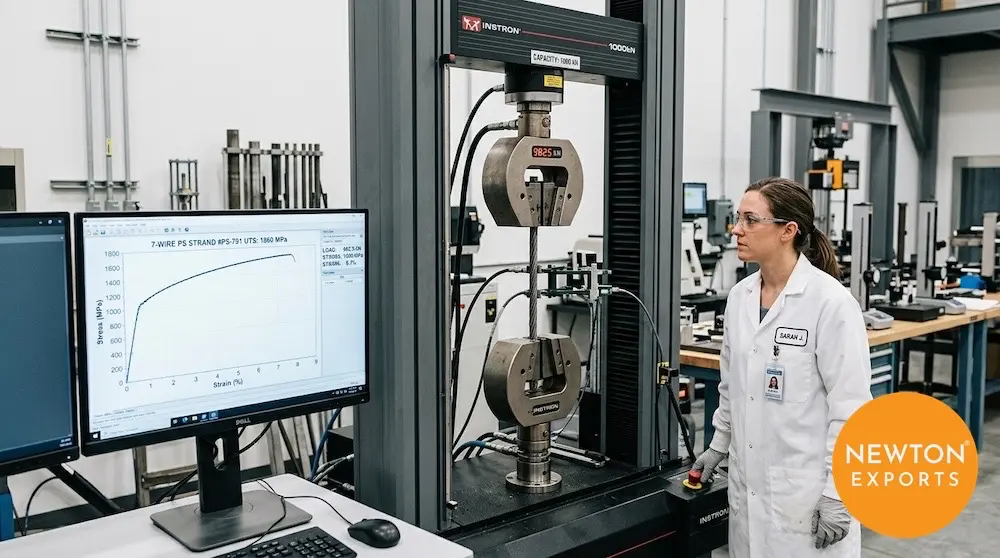

- Mill Test Certificates (MTC): Every consignment includes EN 10204 3.1 certified test reports detailing heat number, full chemical composition (C, Mn, Si, P, S, Cr), actual breaking force, 0.2% proof load, total elongation at rupture, and 1000-hour relaxation curves.
- FCL Container Lashing: Stuffed in 20ft heavy-tested shipping containers (~25 to 27 Metric Tons payload) with
ISPM-15 certified timber chocking, heavy-duty lashing straps, and industrial silica gel desiccants.
Partner with Newton Exports for Your Global LRPC Strand Wire and Prestressing Steel Needs
Whether you require ASTM A416 Grade 270 bare LRPC strand wire for a highway viaduct, indented wire for a railway sleeper facility, or unbonded monostrand for commercial building slabs, Newton Exports delivers certified quality from India’s finest mills, directly to your port of destination.
If you’re ready to work with a MoQ of just 1 x 20ft container and the support of a dedicated team in India, reach out to us.
