Woven Coated Tarpaulin
» 70-250 GSM
» UV Stabilized & Coated
Newton Woven Tarpaulin Catalog

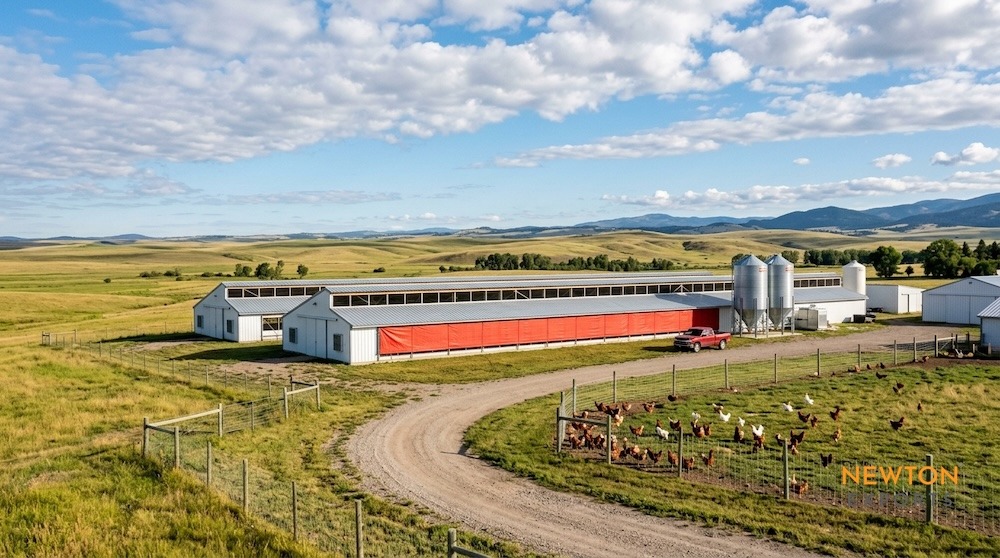

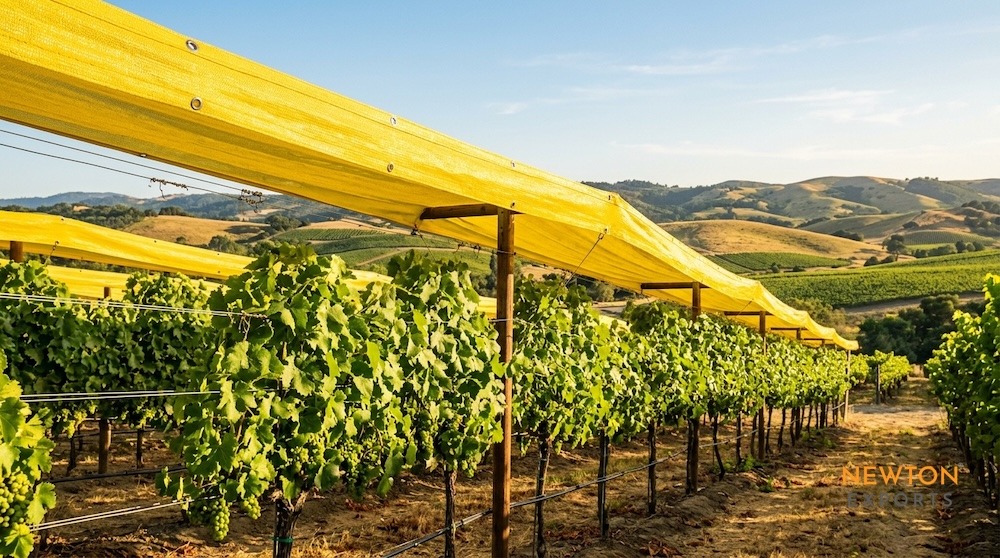

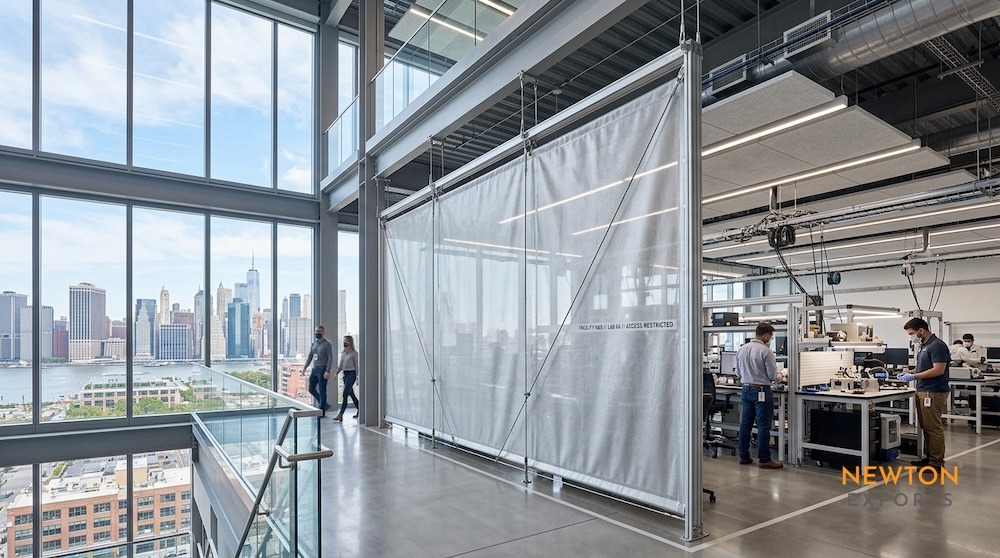

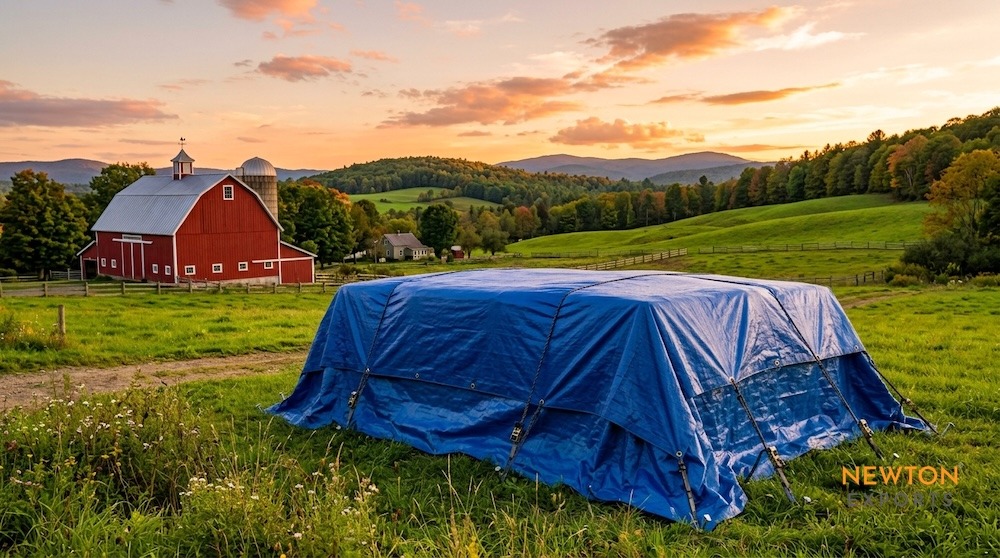

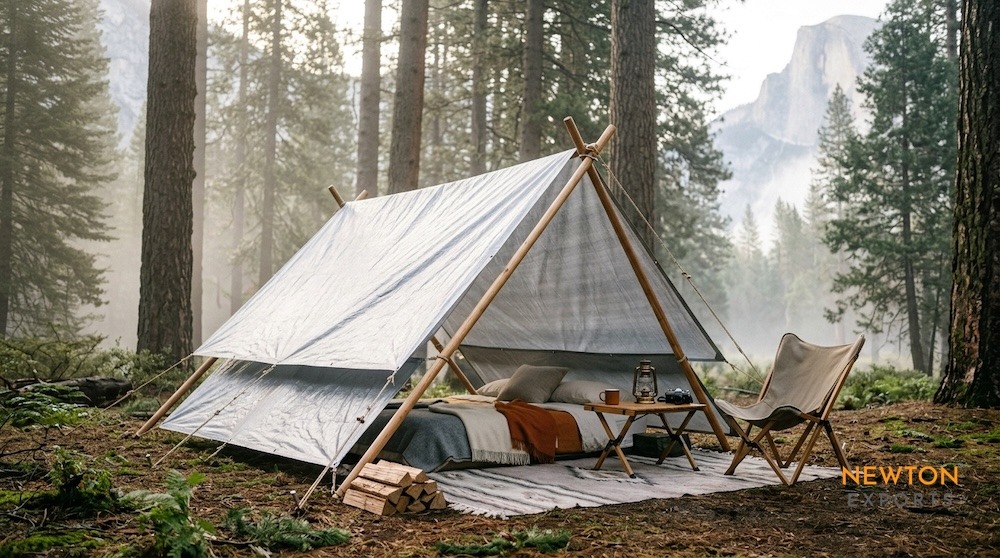

Horticulture | Agriculture | Machinery | Poultry & Livestock | Truck & Transport | Industrial | Construction | Temporary Shelter
Woven Coated Tarpaulin – single-layer HDPE/PP woven fabric, coated on both sides for waterproof, all-weather covering across truck, agriculture, poultry, machinery and industrial use. Made using American Technology, UV stabilized for long outdoor life, lab-tested to IS 7903.
What is Woven Coated Tarpaulin
Woven coated tarpaulin is made from HDPE or PP tape woven into a single-layer fabric, then coated on both faces to seal the weave and make it fully waterproof. Unlike cross laminated tarpaulin, which crosses multiple film layers for multi-directional tear resistance, woven coated tarpaulin gets its strength from the tightness of the weave itself — a proven, economical construction used worldwide for general-purpose and heavy-duty covering.
UV stabilizer is compounded into the coating and base tape during extrusion, so the sheet resists chalking, stiffening and colour fade through extended outdoor exposure. Every batch is tested against IS 7903 (mass, breaking strength, UV retention) alongside IS 1969, IS 14293 and IS 2454 for weld strength, tear and colour fastness.
Key Features
- Excellent waterproof property with high hydrostatic resistance
- Superior tensile and tear strength
- UV stabilized to withstand prolonged outdoor exposure
- Strong welded seams — retains 85% breaking strength after 144h UV exposure
- Lightweight, easy to handle and fold
- 100% recyclable and eco-friendly
Physical Property Performance
Tested per IS 7903 / IS 1969 / IS 14293 / IS 2454 for 200 & 250GSM only. Values are typical, not minimum/maximum limits.
| Property | UOM | Test Method | 200 GSM | 250 GSM |
| Breaking strength — Warp, Min | N | IS 1969 (I) / ISO 1421-1 | 1000 | 1100 |
| Breaking strength — Weft, Min | N | IS 1969 (I) / ISO 1421-1 | 750 | 900 |
| Elongation at break | % | IS 1969 (I) | 15-25 | 15-25 |
| Retention after 144h UV | % | IS 1969/13162 | 85% min | 85% min |
| Trapezoid tear strength, Min | N | IS 14293 / ISO 4674-1 | 120 | 130 |
| Puncture resistance, Min | N | Annex D, IS 7903 | 300 | 350 |
| Colour fastness to light | Grade | IS 2454 | 4 | 4 |
GSM Selection Guide
| GSM | Typical Use | Grade |
|---|---|---|
| 70–90 | Light covers, temporary agri/poultry curtains, short-term shelter | Light-duty |
| 100–150 | General-purpose truck cover, machinery cover, medium outdoor exposure | Medium-duty |
| 150–200 | Long-haul transport, extended outdoor storage — IS 7903 Type I certified | Heavy-duty |
| 250 | Industrial, construction, high-abrasion covering — IS 7903 Type II certified | Extra heavy-duty |
300+ GSM available on order.
Product Range - 70 to 250 GSM
Available in multiple weights and colours – higher GSM (300+) available on order, MOQ applies.
Colours: Blue · Black · Red · Yellow · Olive Green · Brick Orange · Silver
Blue and Black are standard stock colours. Red, Yellow, Olive Green, Brick Orange and Silver are available to order — MOQs may apply. Width and length fully customizable.

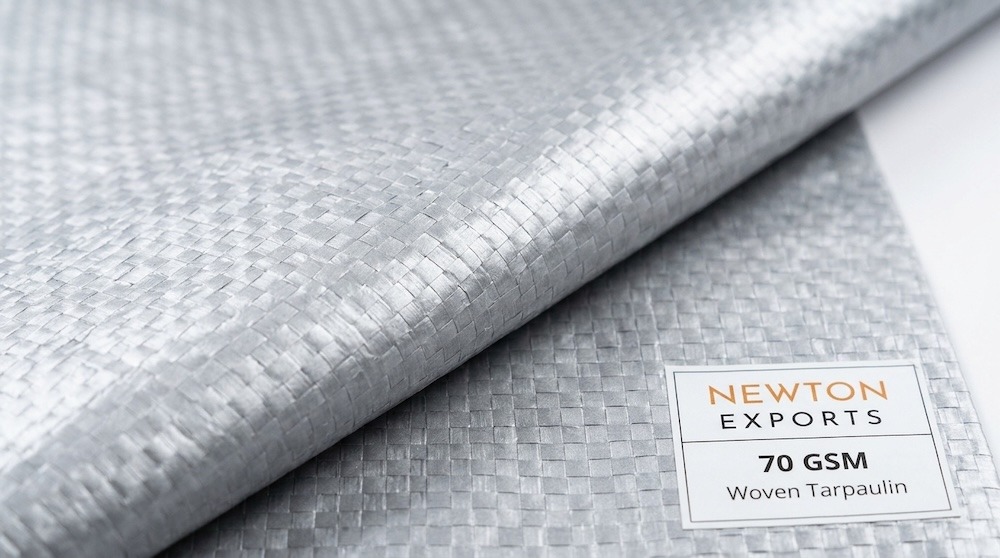

70 GSM Silver

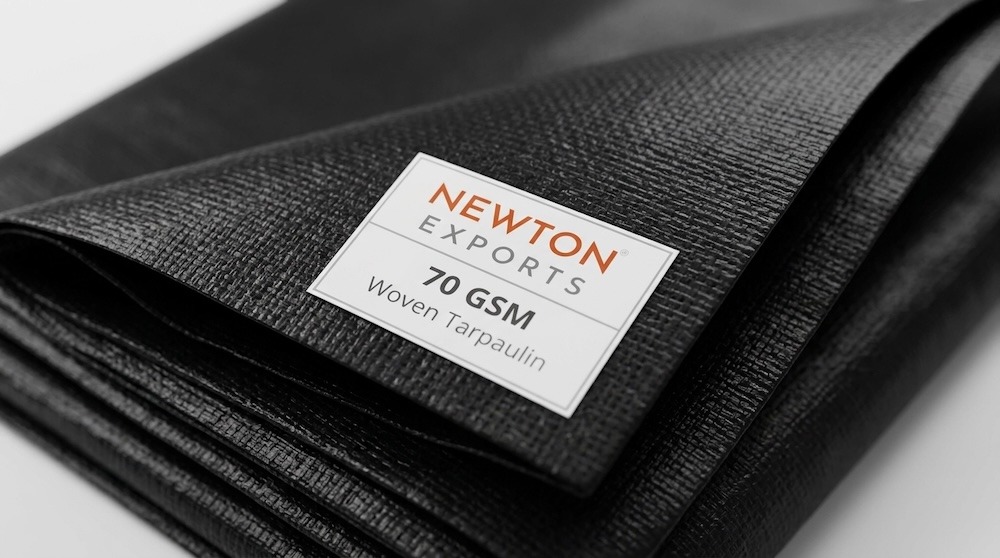

70 GSM Black

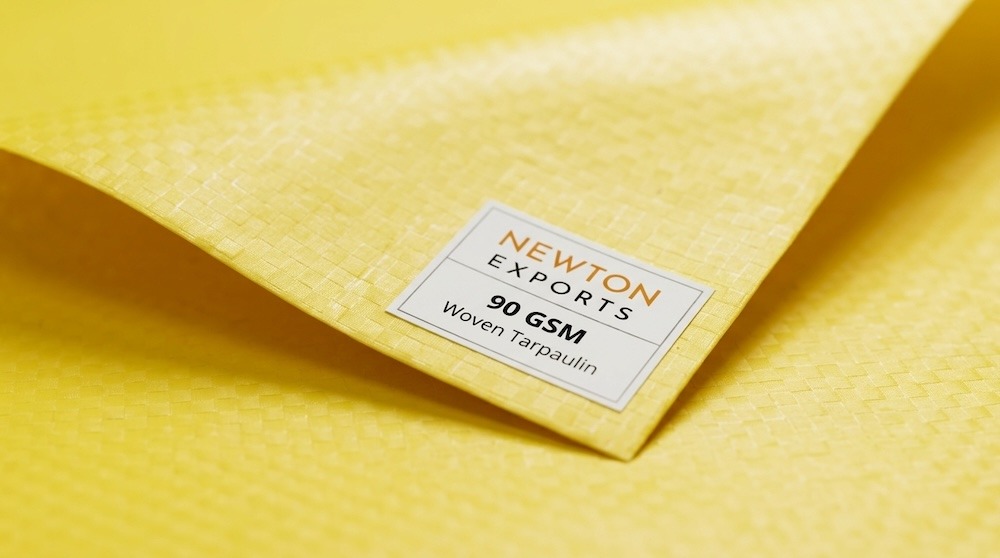

90 GSM Yellow

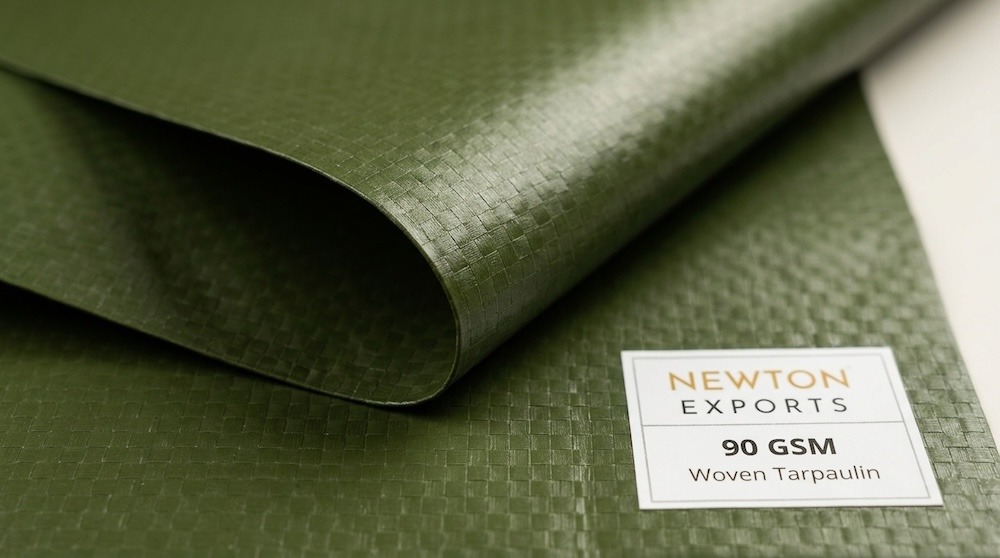

90 GSM Olive Green
120 GSM Brick Red
120 GSM Silver

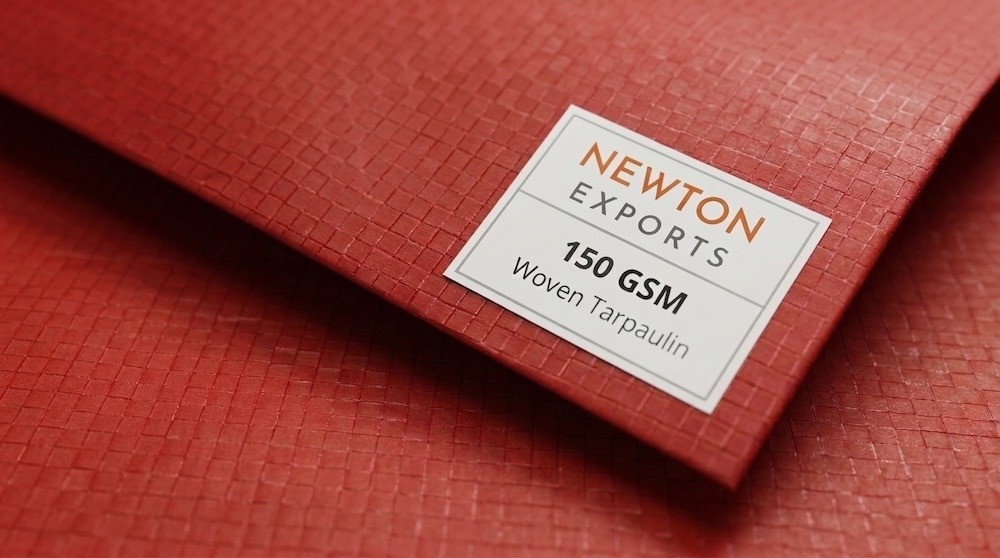

150 GSM Red

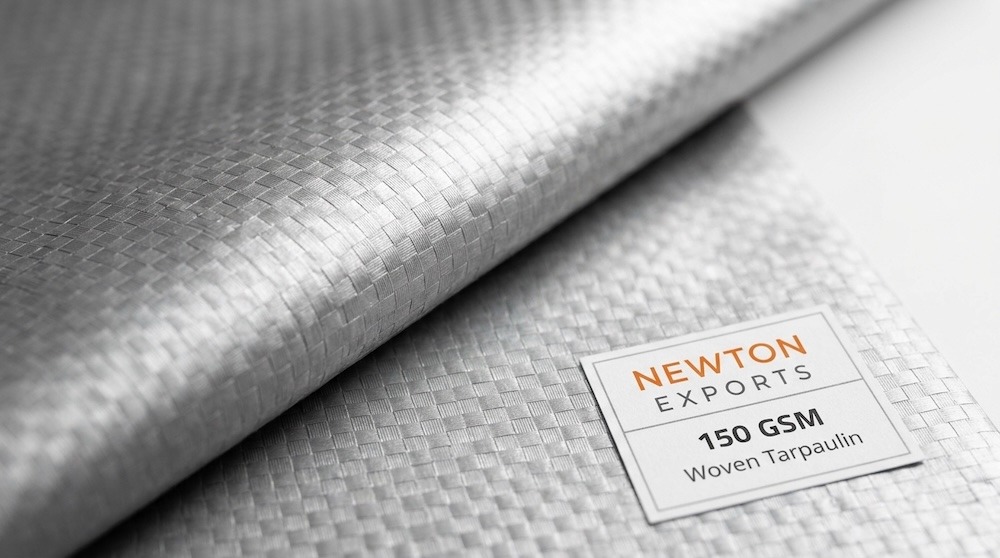

150 GSM Silver

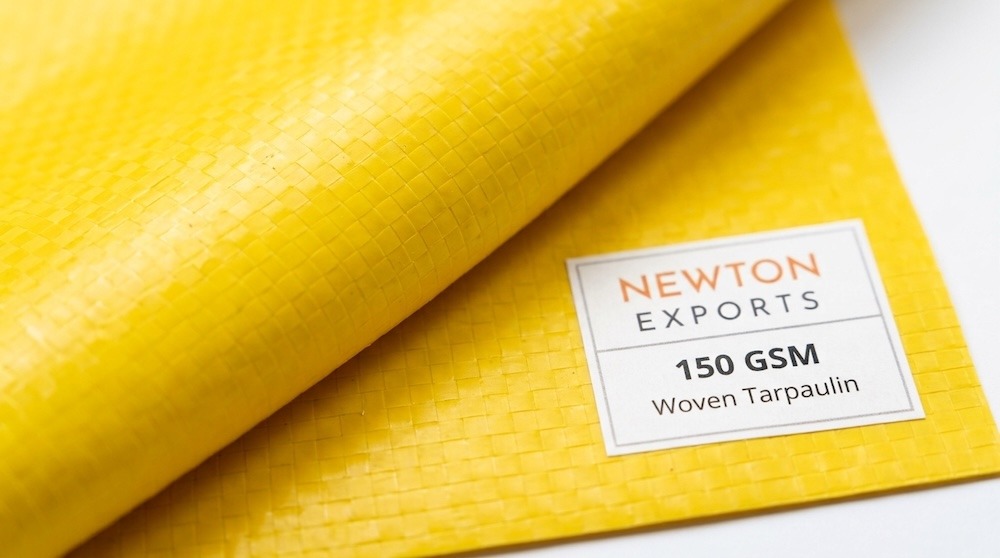

150 GSM Yellow

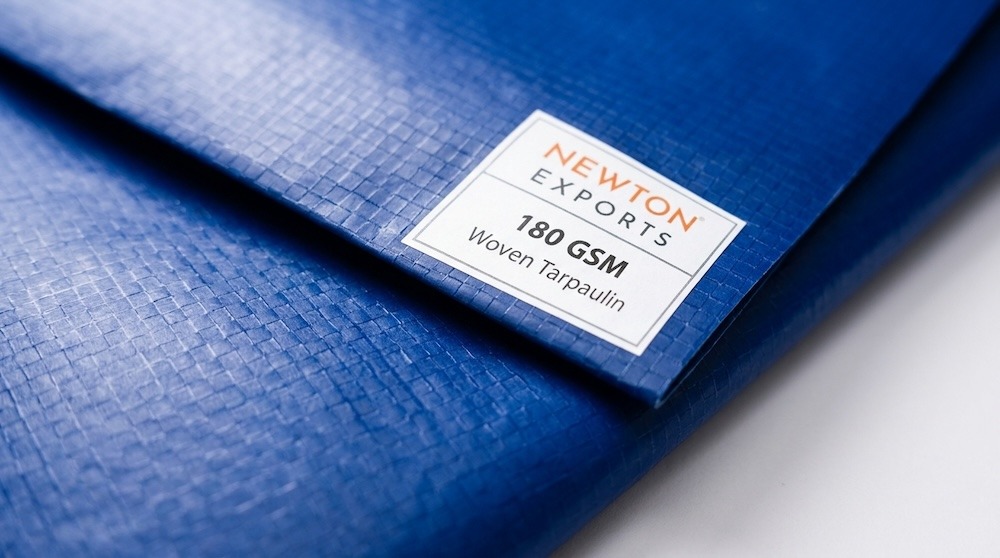

180 GSM Blue

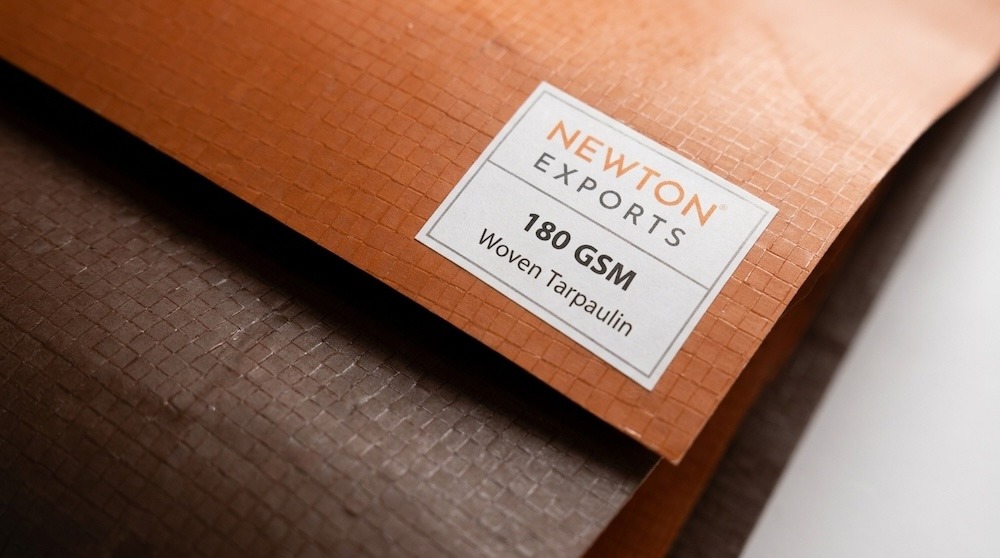

180 GSM Brick & Brown

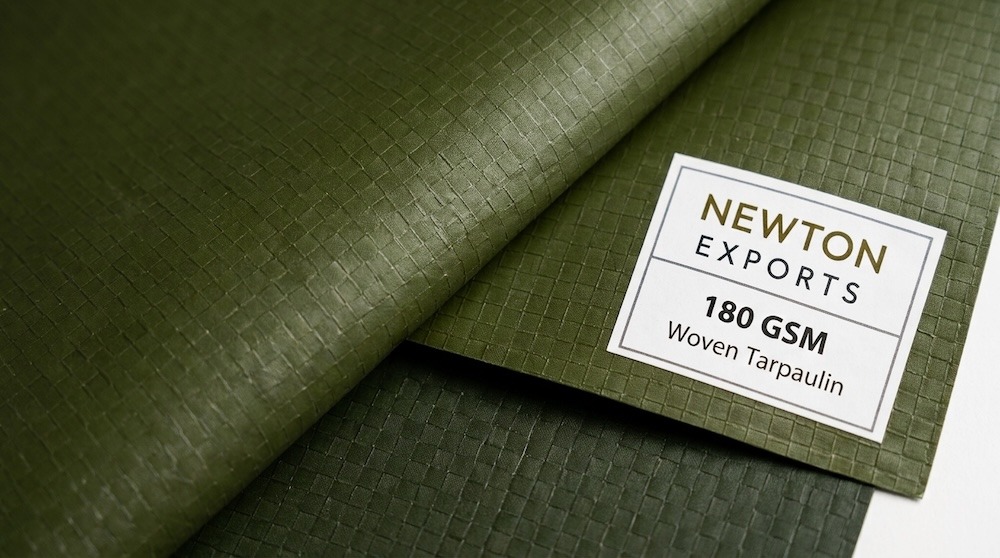

180 GSM Green

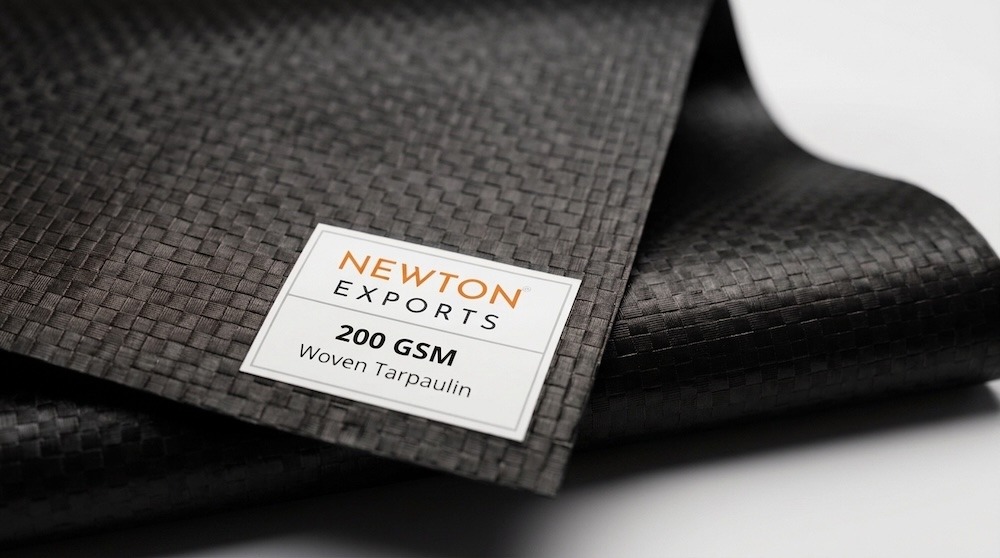

200 GSM Black

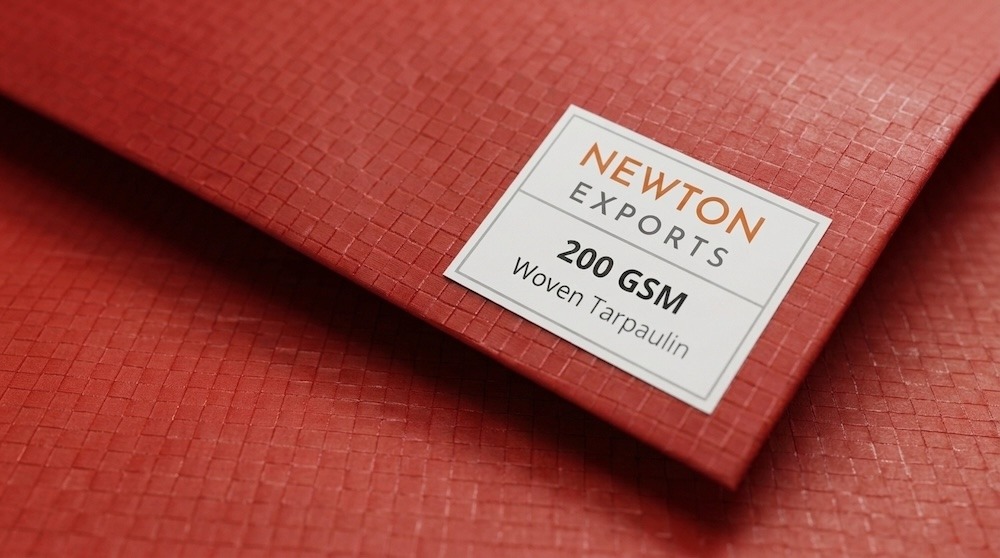

200 GSM Red

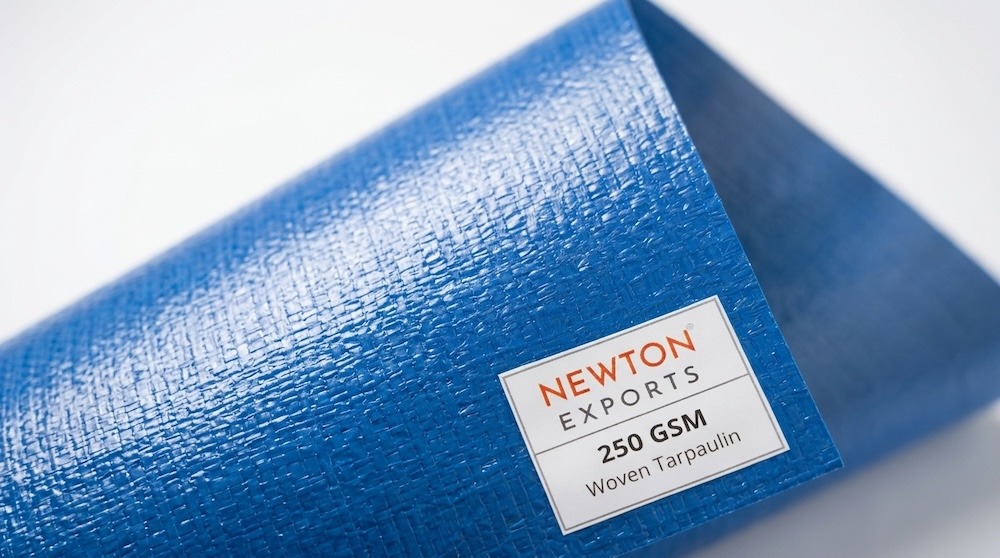

250 GSM Blue

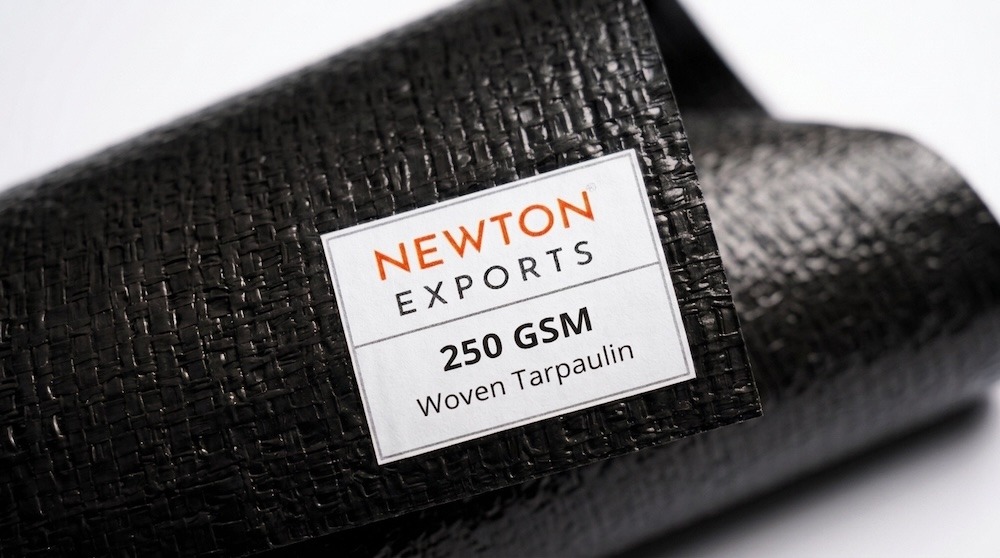

250 GSM Black
Why Woven Coated Tarpaulin
Engineered strength across every GSM in the range.
100% Waterproof
Double-side coated weave, excellent hydrostatic resistance, welded seams.
UV Stabilized
Withstands prolonged sun exposure without embrittlement or colour fade.
Abrasion & Puncture Resistant
Tight-woven base tape holds up against rough handling and repeated folding.
100% Recyclable
Eco-friendly, chemical inert construction that can be recycled easily.

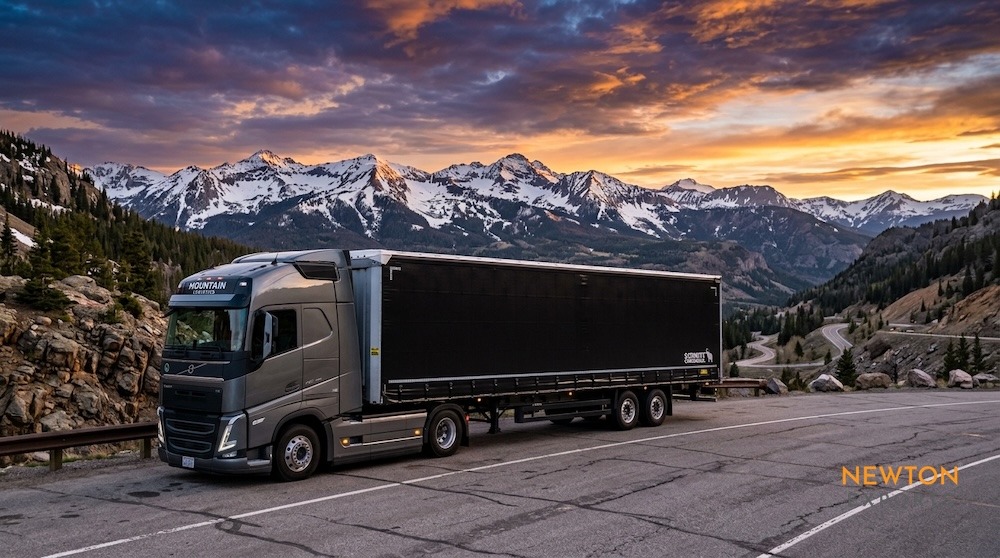

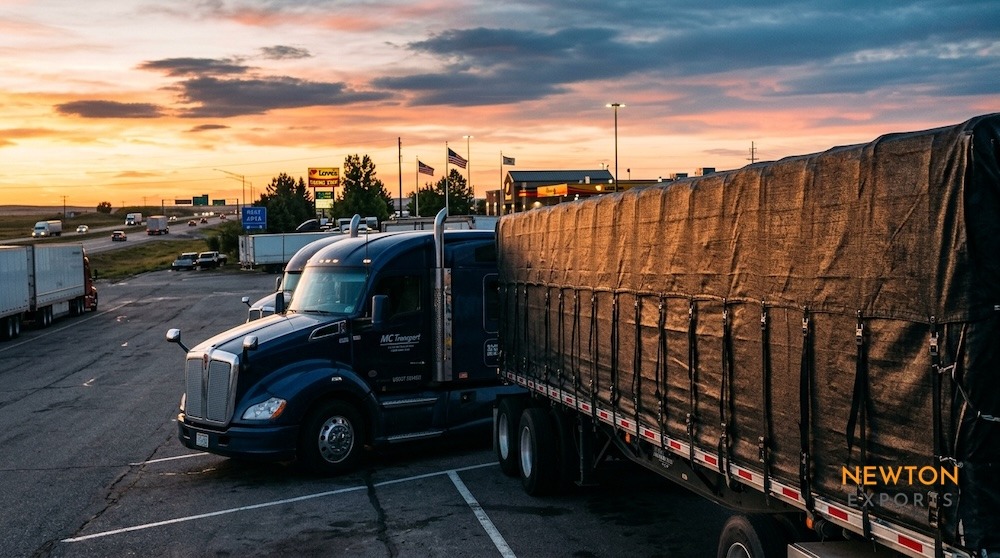

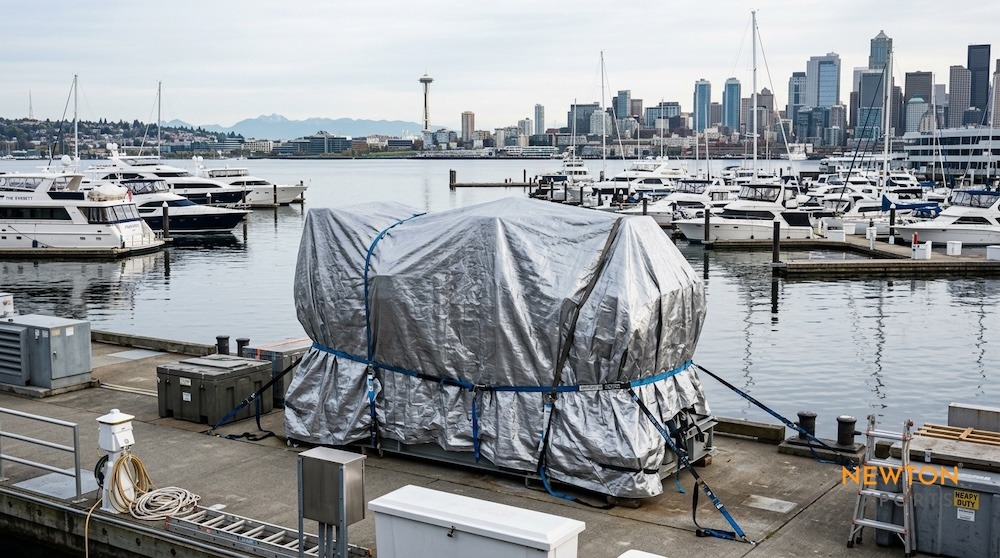

Where Woven Coated Tarpaulin is Used
Cross Laminated Tarpaulin vs Woven Coated Tarpaulin
| Feature | Cross Laminated Tarpaulin | Woven Coated Tarpaulin |
|---|---|---|
| Construction | Multiple layers of polymer films cross-laminated at different angles | HDPE/PP woven fabric coated on both sides |
| Manufacturing Technology | Cross lamination technology creates multidirectional reinforcement | Woven tape technology with protective coating |
| Strength Distribution | Uniform strength in every direction | Highest strength along warp and weft directions |
| Flexibility | Excellent flexibility and conforms easily to irregular shapes | Moderately flexible with higher dimensional stability |
| Weight-to-Strength Ratio | Excellent—very high strength despite low GSM | High strength but generally requires higher GSM for similar performance |
| Waterproofing | 100% waterproof | 100% waterproof |
| Tear Resistance | Very high multidirectional tear resistance | Excellent tear resistance in woven directions |
| Puncture Resistance | Good | Excellent, particularly in heavy GSM grades |
| Abrasion Resistance | Good | Superior, ideal for repeated handling |
| UV Resistance | UV stabilized | UV stabilized |
| Folding Performance | Can be folded repeatedly with minimal crease memory | Handles repeated folding well but slightly stiffer in heavier GSM |
| Surface Finish | Smooth film finish | Textured woven appearance |
| Seam Performance | Heat sealed or stitched | Heat welded or stitched with excellent seam strength |
| Typical GSM | 30–300 GSM | 70–300+ GSM |
| Available Widths | Usually wider continuous sheets | Wide rolls with customized widths |
| Printing Suitability | Better smooth surface for branding and printing | Suitable but textured surface limits print quality |
| Life in Outdoor Exposure | Excellent | Excellent, especially heavy-duty grades |
| Cost | Better value for lightweight applications | Better value for heavy-duty industrial applications |
| Texture |
 |
|
Best Applications for Tarpaulin Types
| Application | Recommended Product | Reason |
|---|---|---|
| Truck Covers | Woven Coated | Better abrasion resistance against loading/unloading |
| Long-distance Transportation | Woven Coated | Higher puncture and wear resistance |

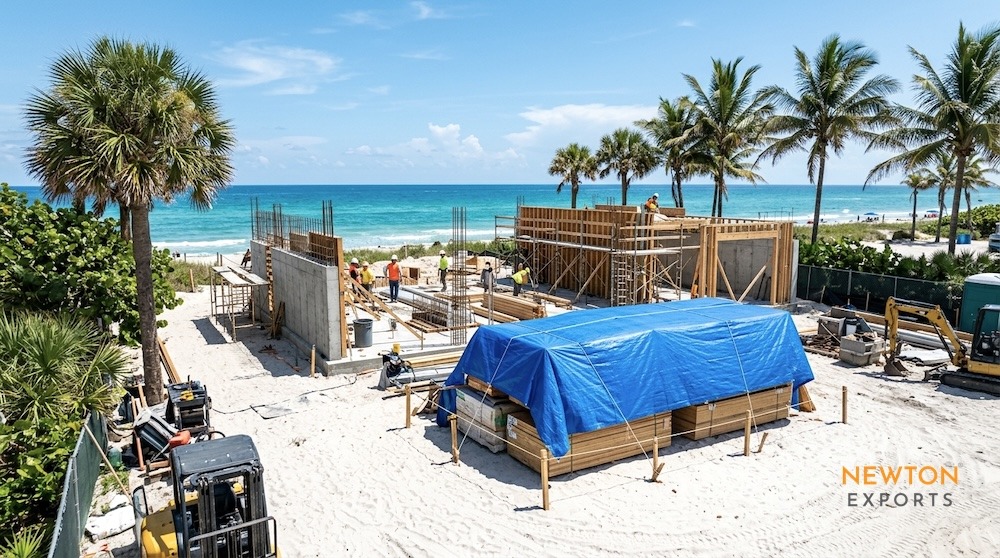

| Construction Site Covers | Woven Coated | Better withstands rough handling and repeated use |
| Machinery Covers | Woven Coated | More durable for industrial environments |
| Steel & Metal Storage | Woven Coated | Higher mechanical strength |
| Brick & Cement Protection | Woven Coated | Better abrasion resistance |

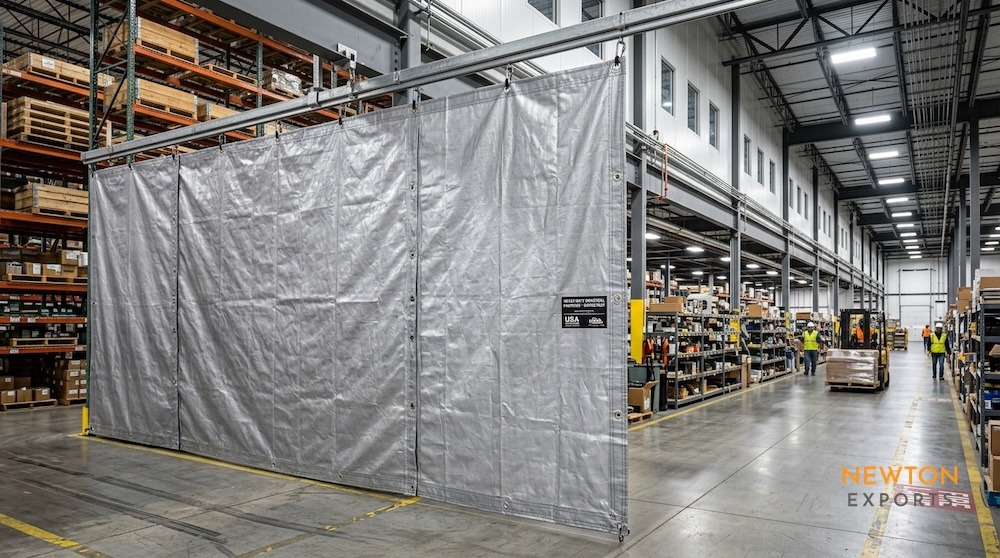

| Warehouse Covers | Woven Coated | Longer service life |
| Agricultural Produce Covers | Cross Laminated | Lightweight and easy to deploy over large areas |
| Temporary Shelters | Cross Laminated | Excellent flexibility and portability |
| Relief Camps | Cross Laminated | Easier transportation and installation |
| Pond Covers | Cross Laminated | Lightweight with excellent waterproofing |
| Nursery & Horticulture | Cross Laminated | Easy handling and frequent repositioning |
| Camping & Outdoor Events | Cross Laminated | Lower weight and easier folding |
| Monsoon Protection | Cross Laminated | Fast deployment over irregular objects |
| Irregular Equipment Covers | Cross Laminated | Conforms better to complex shapes |
| General Household Covers | Cross Laminated | Cost-effective and lightweight |
| Industrial Heavy-Duty Covers | Woven Coated | Higher durability under continuous use |
Woven Coated Tarpaulin is engineered for demanding industrial applications where repeated handling, abrasion resistance, and puncture strength are critical. It is widely used for truck covers, construction, machinery protection, warehousing, and long-term outdoor storage. The woven fabric construction combined with double-sided coating delivers exceptional durability in heavy-duty environments.
Which Product Should You Choose?
Choose Cross Laminated Tarpaulin if you need:
- Lightweight material
- Easy transportation
- Better flexibility
- Covers for irregular shapes
- Temporary shelters
- Agricultural protection
- Emergency relief applications
- Large-area covering with lower weight
Choose Woven Coated Tarpaulin if you need:
- Heavy-duty industrial performance
- Truck transportation
- Construction projects
- Machinery protection
- Higher abrasion resistance
- Better puncture resistance
- Long-term outdoor exposure
- Frequent handling and reuse
Every roll is UV stabilized during extrusion and tested to IS 7903, IS 1969, IS 14293 and IS 2454 – specification sheets backed by batch-wise lab data. Made using American technology with raw polymer is manufactured domestically in India, cutting a cost layer that many countries can’t avoid.
