Cross Laminated Tarpaulin
» 35-300 GSM Multilayer
» UV Stabilized
Newton Cross Laminated Tarpaulin Catalog
Horticulture | Agriculture | Machinery | Mining | Industrial | Building | Construction | Warehousing
Cross Laminated Tarpaulin – Multi-layer HDPE film engineered for horticulture, agriculture, machinery, mining, warehousing, construction & industrial covering.
Made in India on American cross-lamination technology, lab-tested to global standards.
What is Cross Laminated Tarpaulin
Cross laminated tarpaulin is built from multiple layers of high-density polyethylene tape, laid in a criss-cross (0°/90°) pattern and laminated between two outer film layers. This cross-oriented construction gives the sheet strength in every direction, not just along one axis — a key difference from standard woven tarpaulin, where strength runs mainly along the weave and a small cut can run the length of the sheet. In cross laminated tarpaulin, the crossing layers stop a tear from propagating, so a puncture stays a puncture instead of splitting the whole sheet.
Every roll is UV stabilized during extrusion, meaning the stabilizer is compounded into the polymer itself rather than coated on afterward. That matters for anyone buying material that will sit outdoors for months – an uncoated film chalks, stiffens, and cracks within a season under strong sun, while a properly stabilized sheet holds its flexibility and colour for years. It’s also why lab testing matters more here than for most materials: accelerated UV exposure testing (192 hours, per IS 14611:2016 Annex G) is the one number that tells a buyer whether a supplier’s stabilizer package is real or minimal.
Key Features
- Conforms to Indian Standard IS 14611:2016
- UV stabilized to withstand tough climatic conditions
- Inert to most chemicals and acids
- Easy handling and transportation
- 100% waterproof with excellent hydrostatic resistance
- Superior tensile and tear strength
- Withstands environmental conditions in all weather
- High elongation & flexibility to avoid cracks and puncture resistance
- 100% recyclable and eco-friendly
Physical Property Performance
Values indicate minimum test performance per weight class and may vary marginally by production batch. Lab test reports (Asian & American accredited labs) are available. MD = Machine Direction, TD = Transverse (Cross) Direction.
| Characteristic | UOM | Test Method | Extra Light | Light | Medium | Heavy | Extra Heavy |
| Mass Per Unit Area | GSM | 7016 Part-1 | 35 / 55 / 60 | 70 | 120-180 | 200-250 | 300 |
| Tensile Strength at Break — MD | Kg/cm² | IS:13360 | 250 | 250 | 250 | 250 | 250 |
| Tensile Strength at Break — TD | Kg/cm² | IS:13360 | 200 | 200 | 200 | 200 | 200 |
| Elongation at Break — MD | % | IS:13360 | 300 | 400 | 400 | 400 | 400 |
| Elongation at Break — TD | % | IS:13360 | 250 | 300 | 300 | 300 | 300 |
| Tear Strength (Elmendorf) — MD | Gram | IS:14611, Annex F | 650 | 1200 | 2080 | 3200 | 4000 |
| Tear Strength (Elmendorf) — TD | Gram | IS:14611, Annex F | 450 | 900 | 1600 | 2800 | 3500 |
| Free Fall Dart Impact | Gram | IS:13360 | 100 | 250 | 400 | 700 | 800 |
| Accelerated UV Resistance (after 192 hrs) | % | IS 14611:2016, Annex G | 50% minimum across all weight classes | ||||
Product Range - 35 to 300 GSM
Available in multiple weights and colours – each sheet GSM and origin marked.

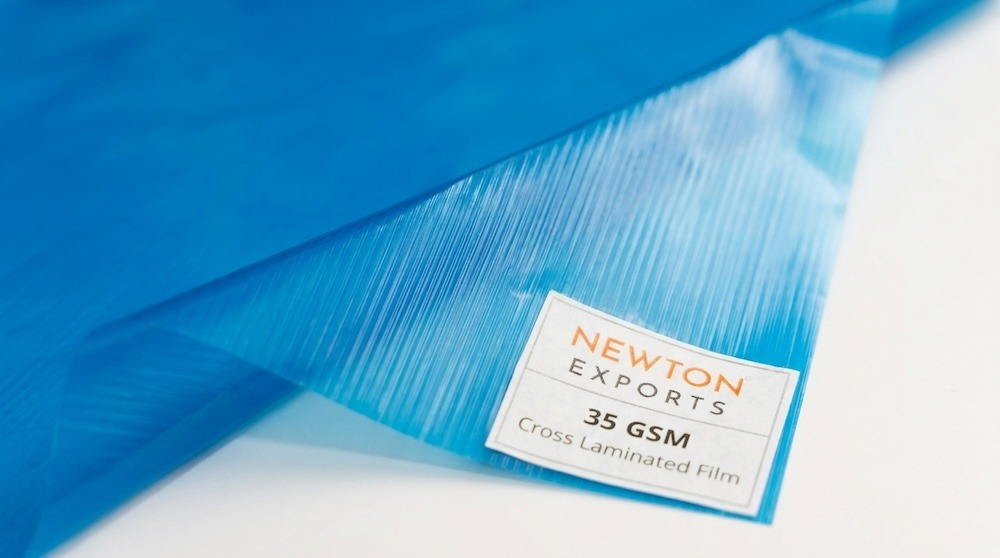

35 GSM Blue

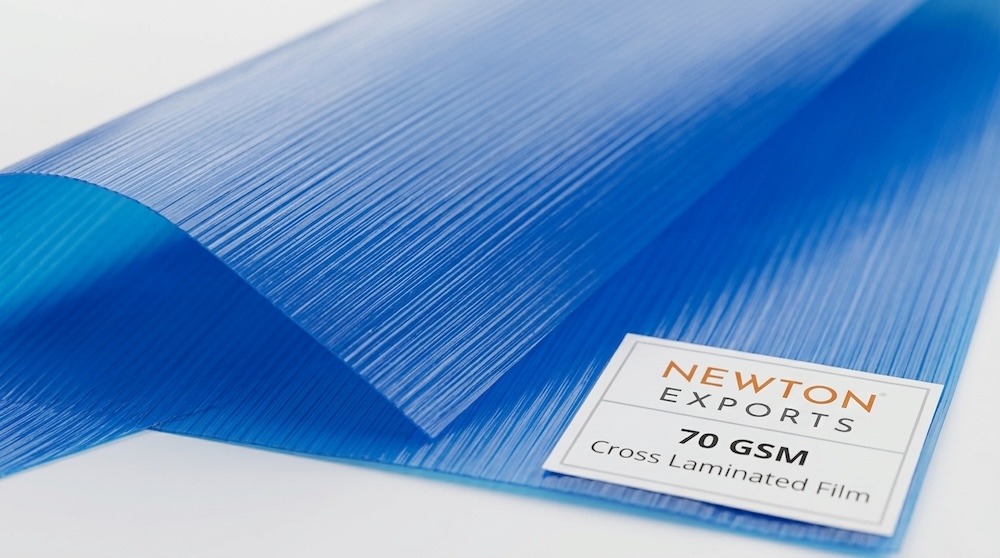

70 GSM Blue

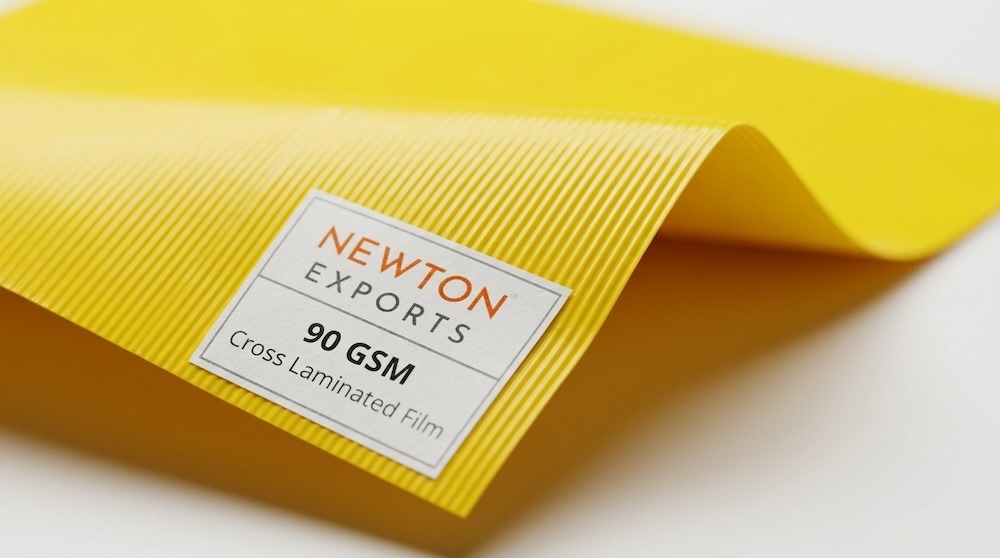

90 GSM Yellow

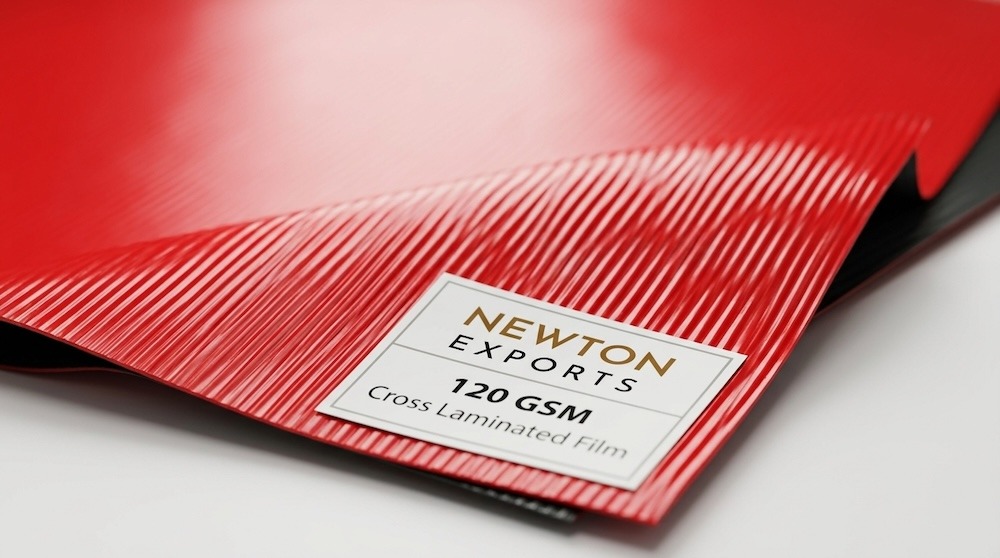

120 GSM Red

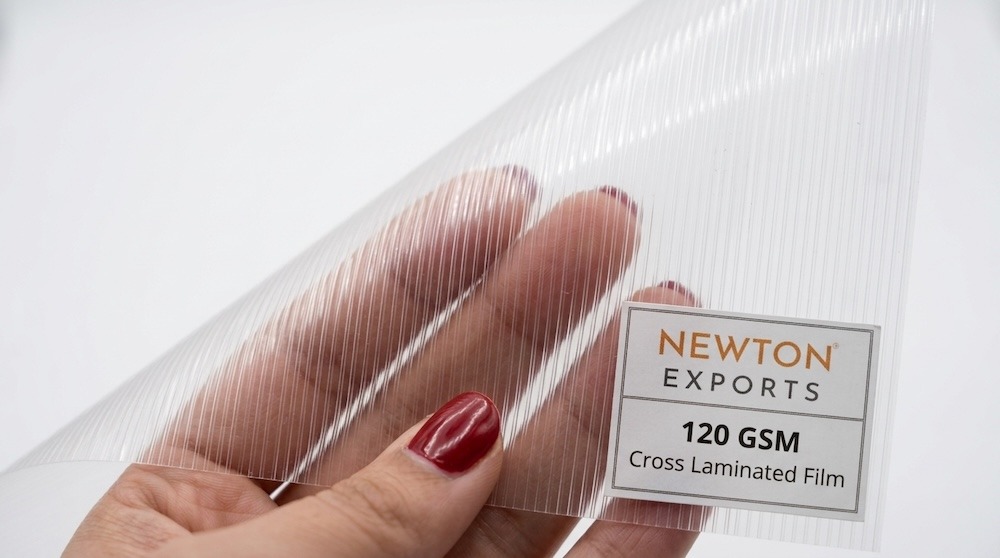

120 GSM Clear

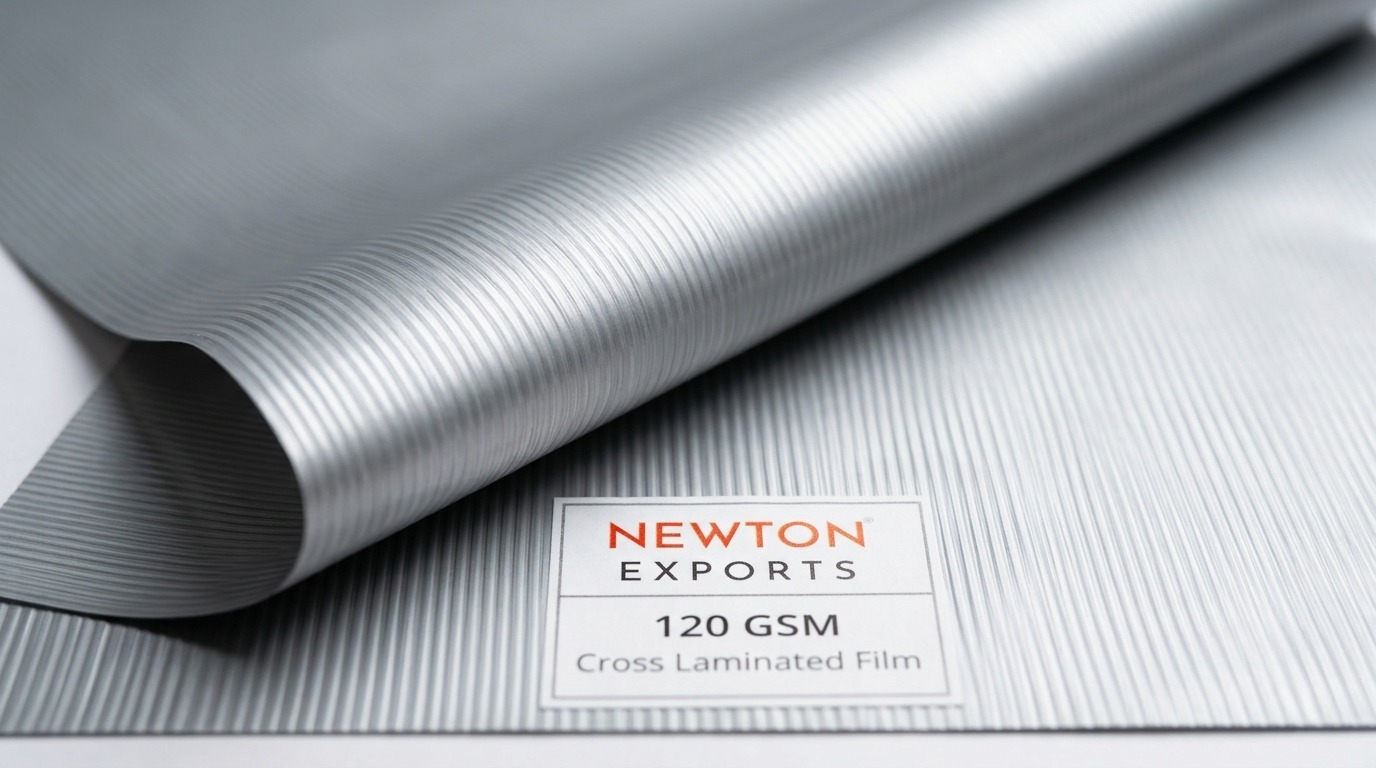

120 GSM Silver

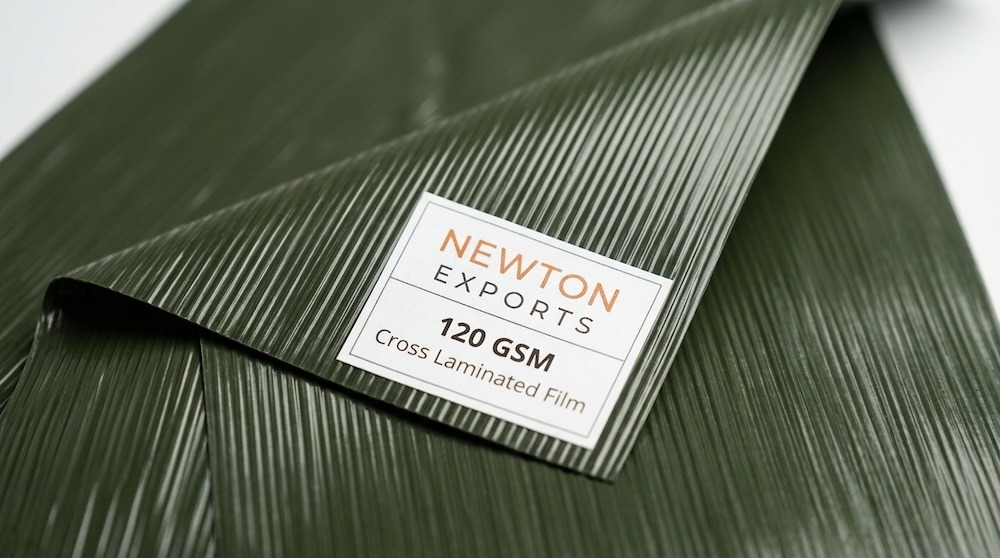

120 GSM Olive Green

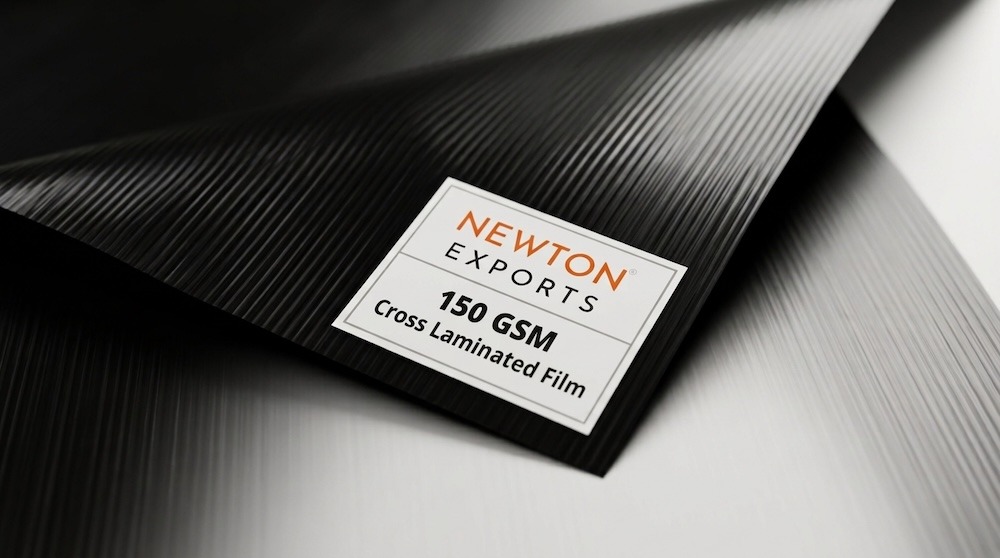

150 GSM Black

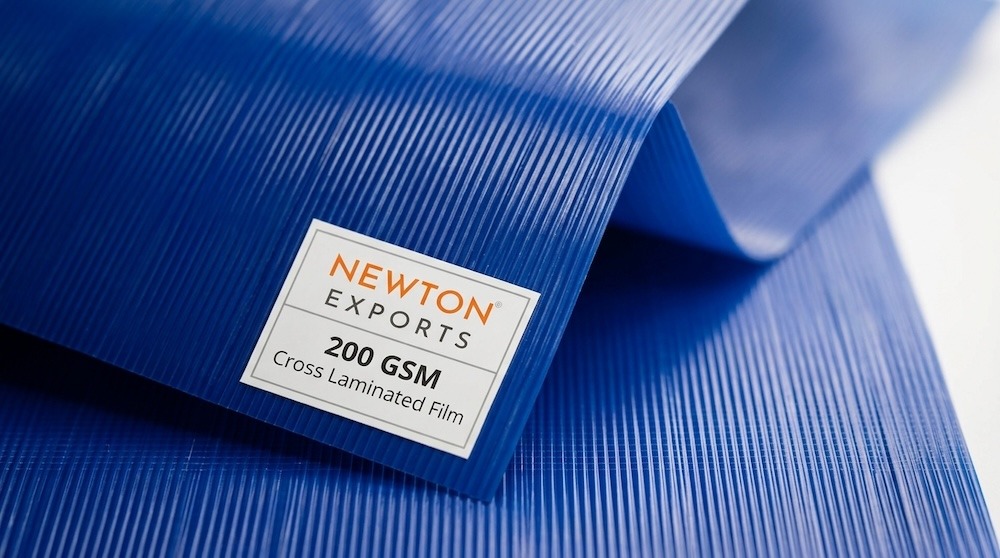

200 GSM Blue

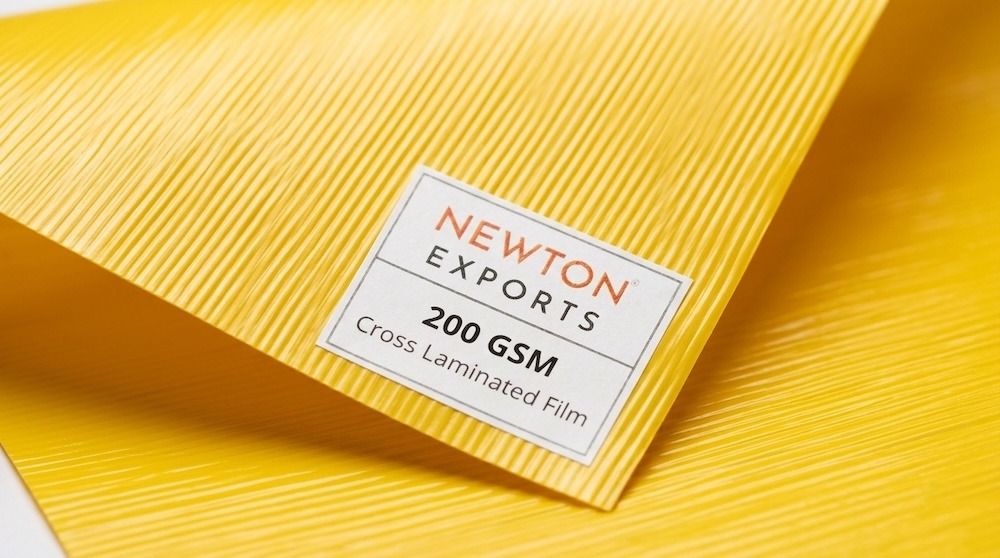

200 GSM Yellow

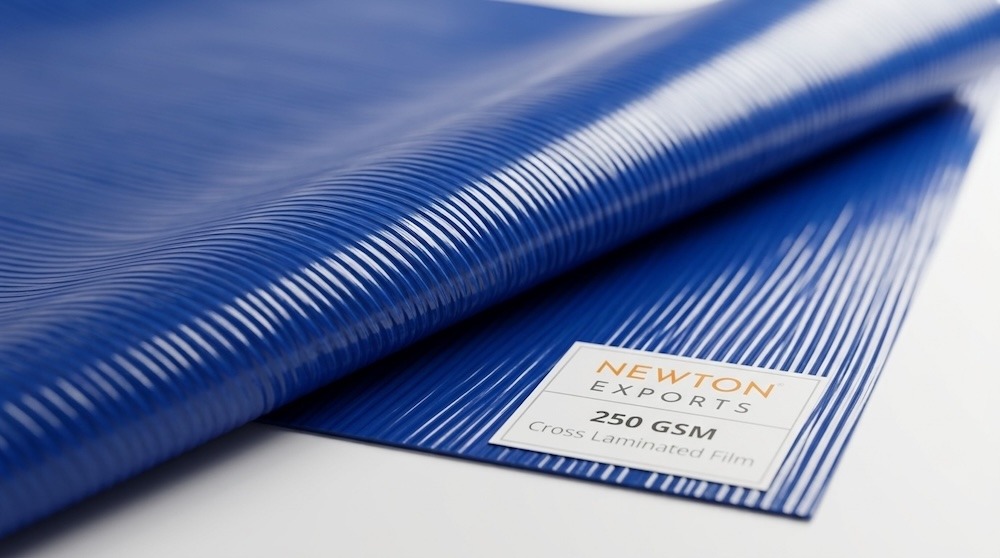

250 GSM Blue

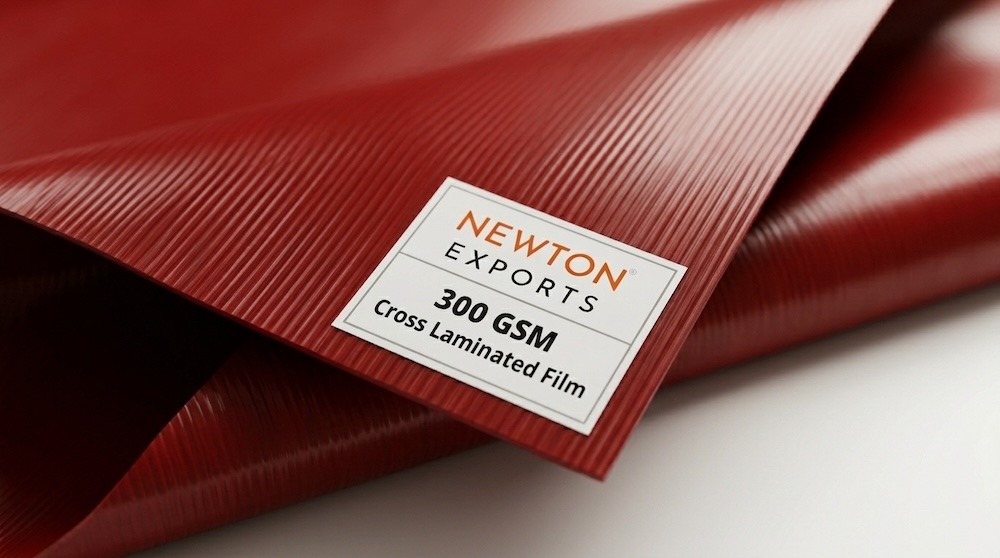

300 GSM Red
Why Cross Laminated Tarpaulin
Engineered strength across every GSM in the range.
100% Waterproof
Sealed multi-layer construction, excellent hydrostatic resistance.
UV Stabilized
Withstands prolonged sun exposure without embrittlement or fade.
Superior Tear Strength
Cross-oriented layers resist tearing in every direction.
100% Recyclable
Eco-friendly, chemical inert, food-safe grades available.
*While Blue and Black are common colors, Red and Yellow are also usually available. Colours such as Silver, Olive Green or Clear are made on order and MoQ’s may apply.
Shown above are only some products, weight, colors and sheet / roll sizes can be customised.
Where Cross Laminated Tarpaulin is Used
One film family engineered across weight classes for eight core sectors.

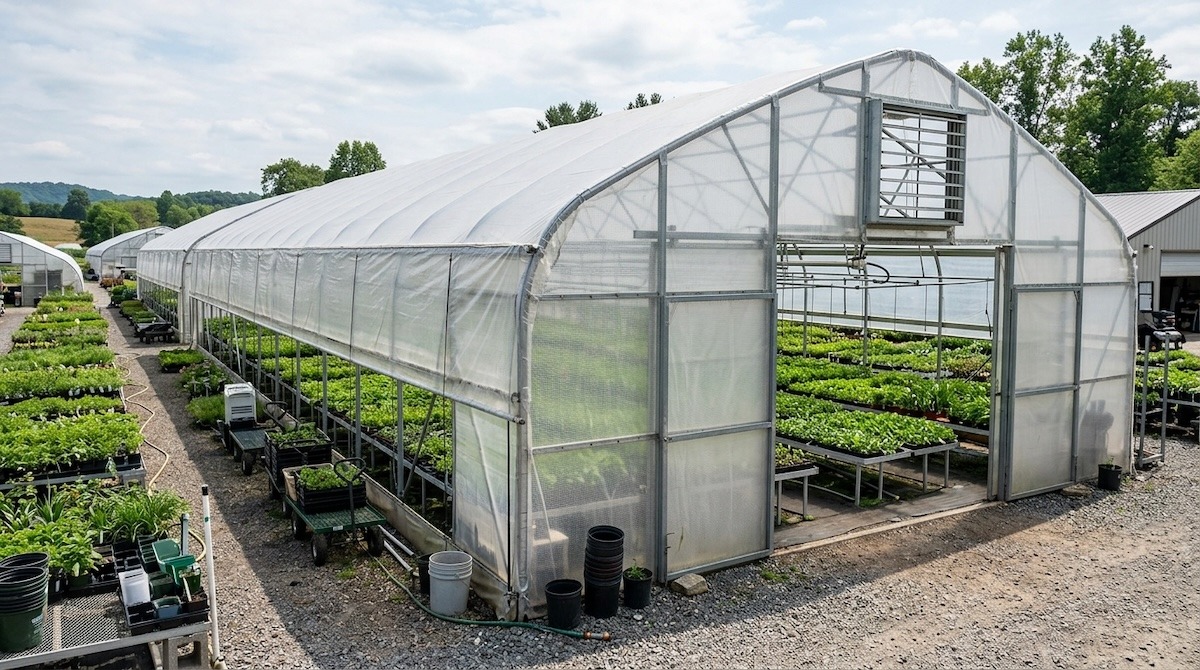

Horticulture
Greenhouse and polytunnel covers built for season-long UV exposure without embrittlement. Light 35–90 GSM grades let diffused sunlight through while blocking wind and frost. Also used for mulching and nursery shade netting support.

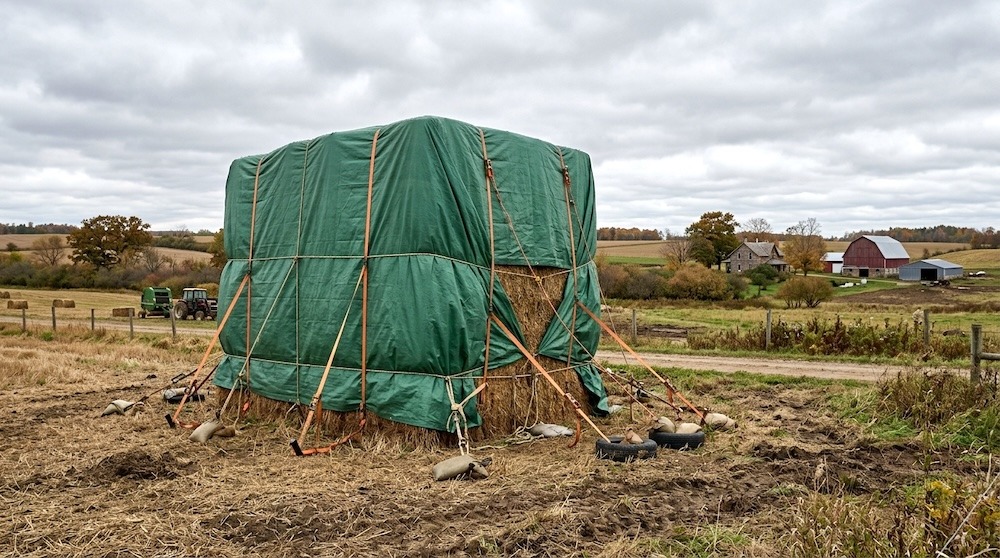

Agriculture
Silage and hay bale covers that stay 100% waterproof through monsoon and storage. Canal and pond lining grades resist chemical exposure from fertilizer runoff. Cross-oriented strength stops tie-down points from tearing loose in wind.

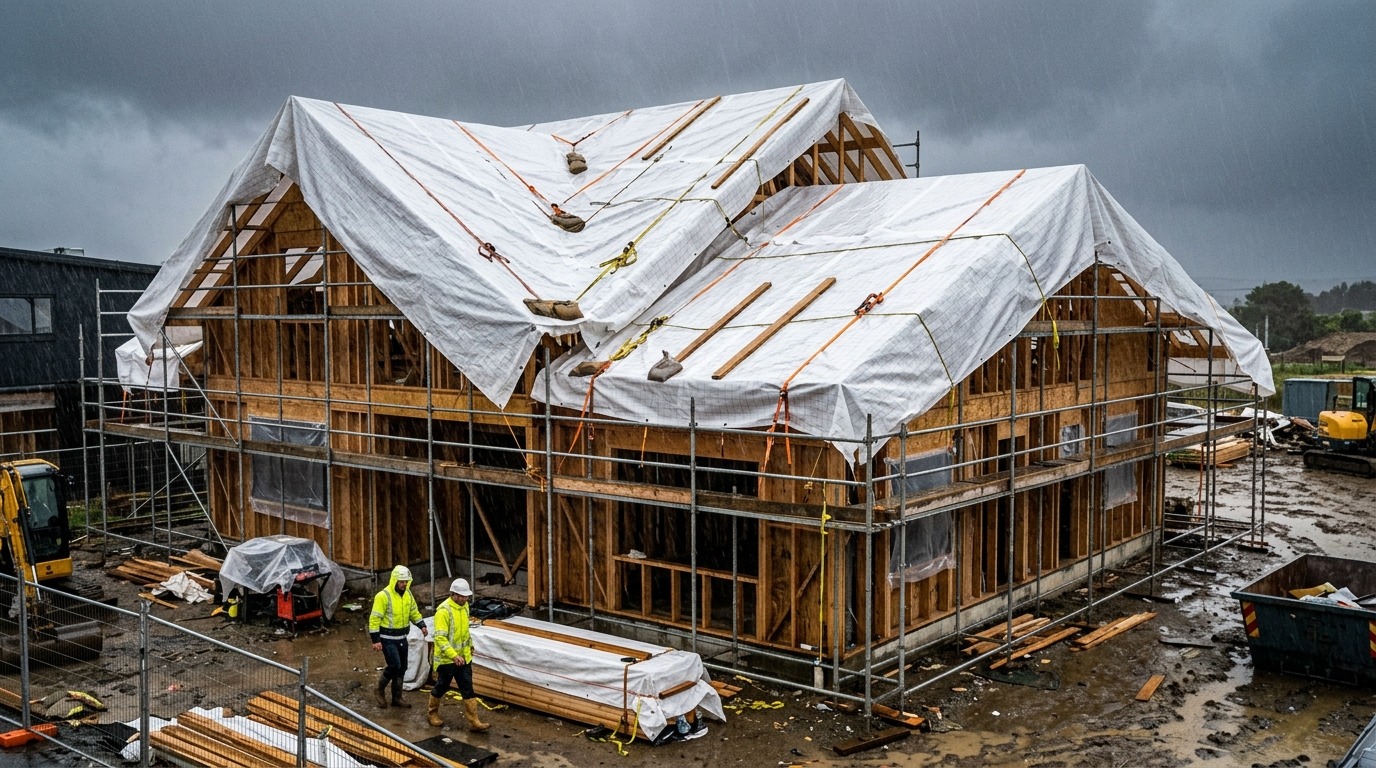

Housing
Temporary roof and framing covers that protect timber and insulation from rain during construction. Withstands repeated tensioning across rafters without puncturing at rope/strap points. Heavy 150–200 GSM grades hold up through multi-week builds.

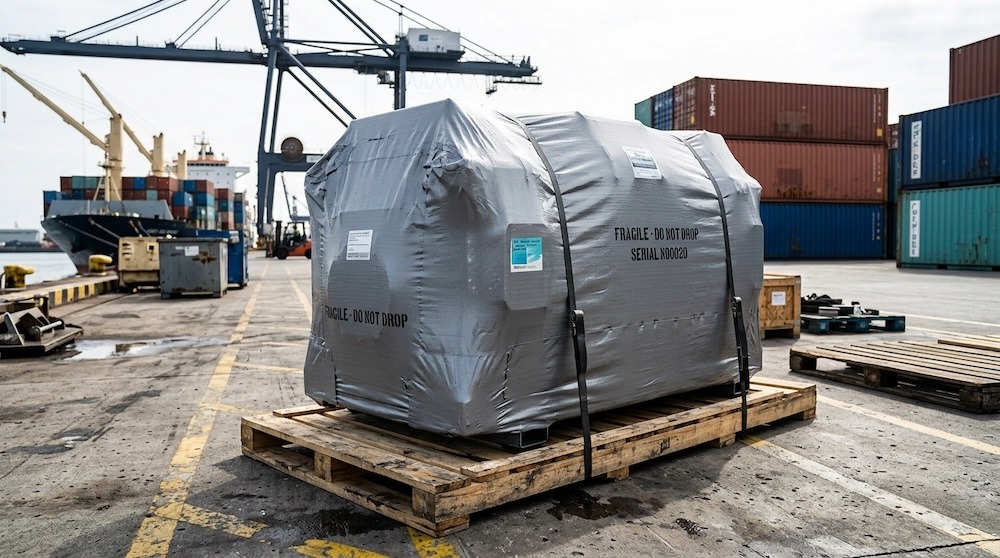

Machinery
Export packing wraps that protect shipped equipment from corrosion and moisture in transit. Puncture-resistant against sharp edges, straps, and container handling. Custom sizing available to wrap irregular machine profiles.

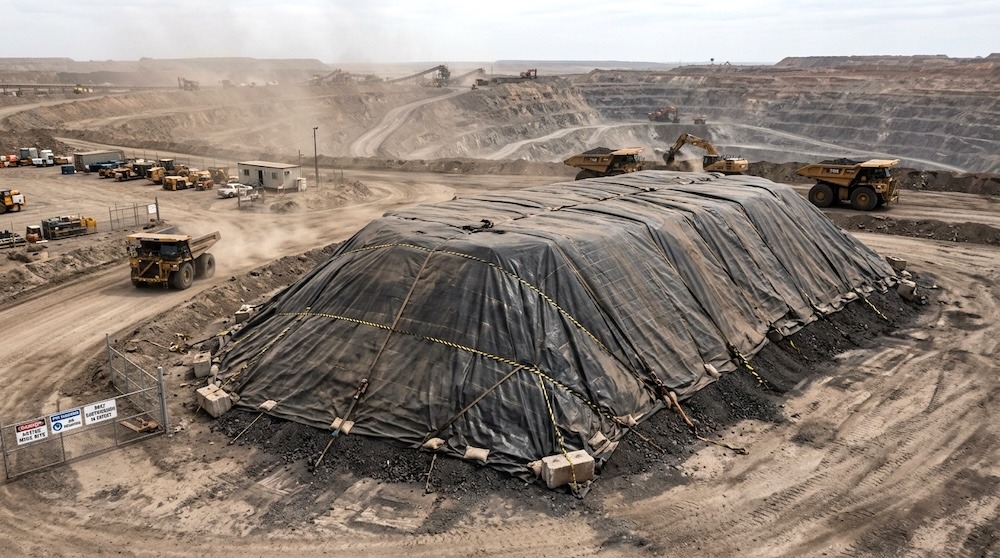

Mining
Stockpile covers engineered for continuous outdoor exposure and abrasion from wind-blown grit. 250–300 GSM grades suppress dust while resisting UV degradation over multi-year deployment. Easily handles large-format single-piece coverage.

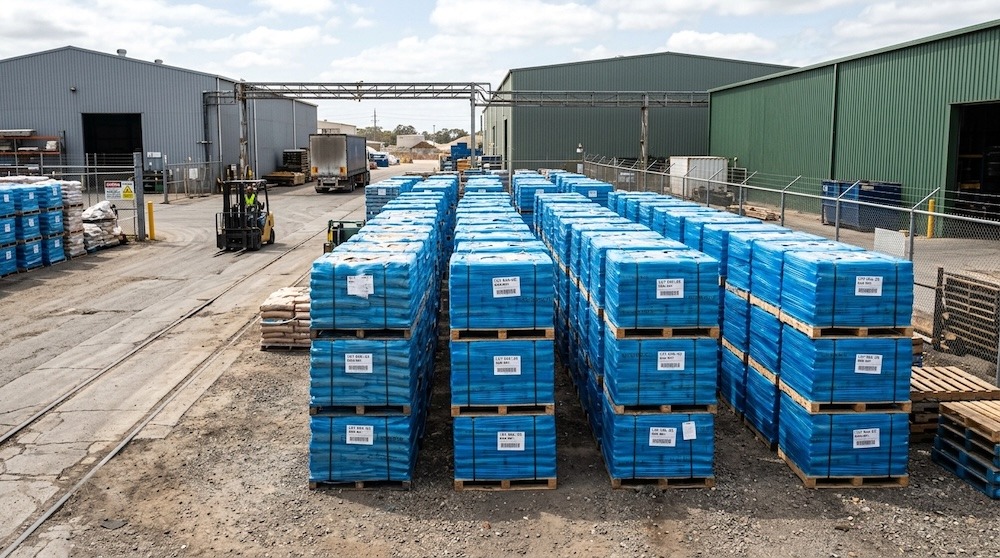

Industrial
Truck, cargo, and equipment covers rated for repeated loading, folding, and highway wind loads. Chemical-inert construction resists diesel, oil, and general industrial exposure. Available in heavy grades for rough daily handling.

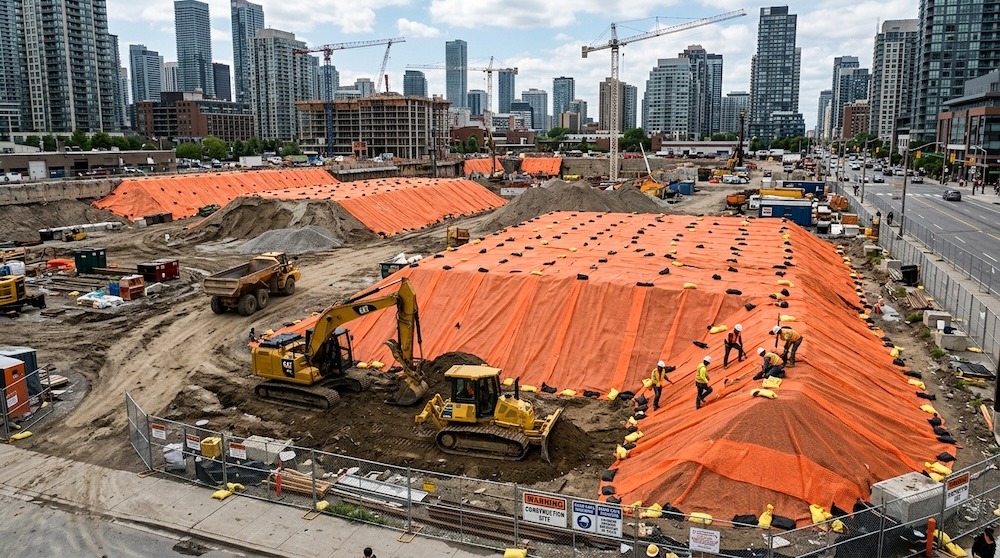

Construction
Curing covers that retain moisture for concrete cure cycles while blocking rain ingress. Site enclosure grade sheeting for dust and weather control across active sites. High tear resistance holds up against scaffolding, rebar, and foot traffic.

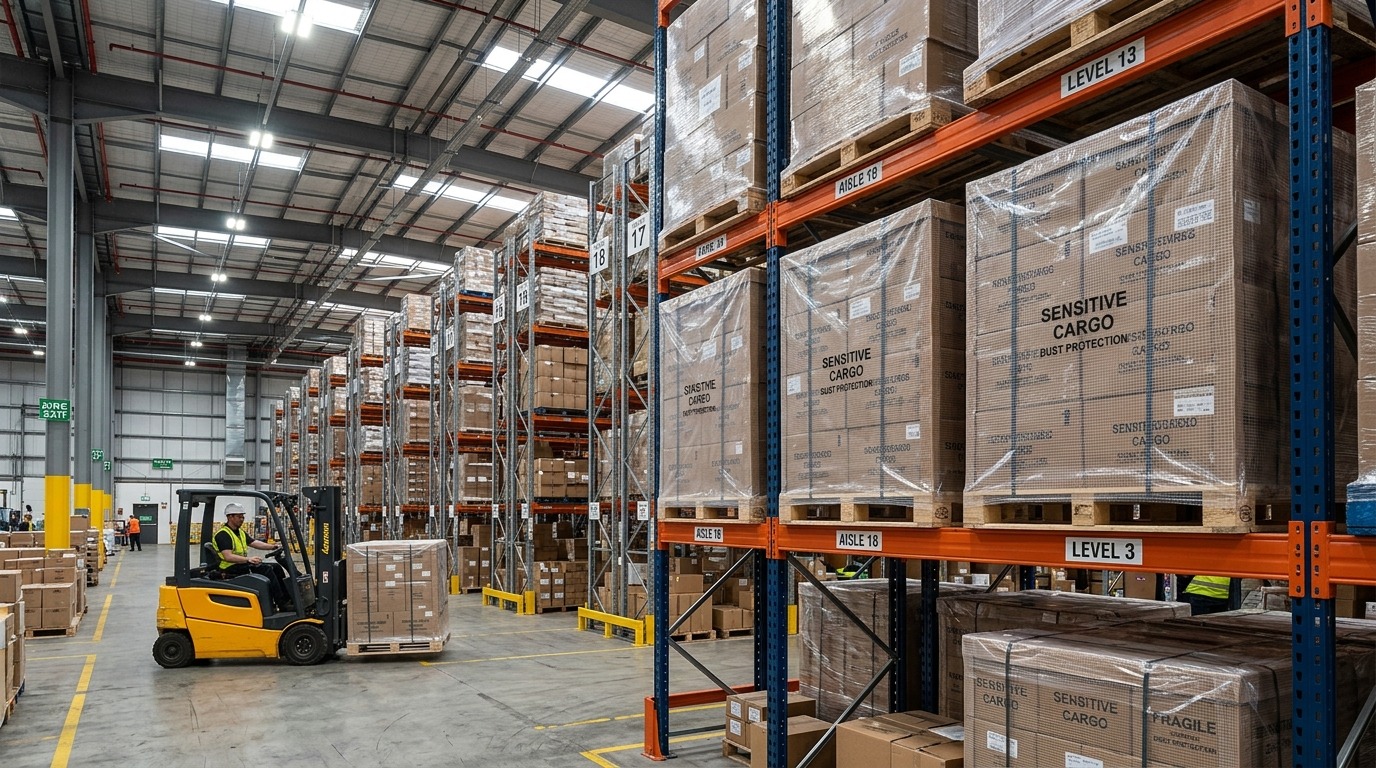

Warehousing
Pallet and rack-level covers protecting sensitive cargo from dust and moisture indoors. Lightweight low-GSM grades for easy draping and removal during pick cycles. Also used as floor-level moisture barriers under stored goods.

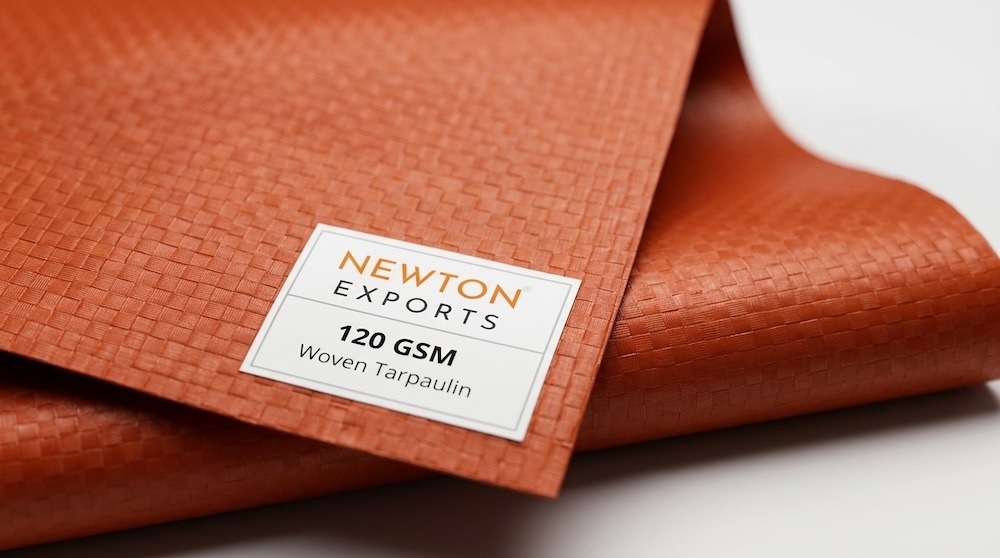

Cross Laminated Tarpaulin vs Woven Coated Tarpaulin
| Feature | Cross Laminated Tarpaulin | Woven Coated Tarpaulin |
|---|---|---|
| Construction | Multiple layers of polymer films cross-laminated at different angles | HDPE/PP woven fabric coated on both sides |
| Manufacturing Technology | Cross lamination technology creates multidirectional reinforcement | Woven tape technology with protective coating |
| Strength Distribution | Uniform strength in every direction | Highest strength along warp and weft directions |
| Flexibility | Excellent flexibility and conforms easily to irregular shapes | Moderately flexible with higher dimensional stability |
| Weight-to-Strength Ratio | Excellent—very high strength despite low GSM | High strength but generally requires higher GSM for similar performance |
| Waterproofing | 100% waterproof | 100% waterproof |
| Tear Resistance | Very high multidirectional tear resistance | Excellent tear resistance in woven directions |
| Puncture Resistance | Good | Excellent, particularly in heavy GSM grades |
| Abrasion Resistance | Good | Superior, ideal for repeated handling |
| UV Resistance | UV stabilized | UV stabilized |
| Folding Performance | Can be folded repeatedly with minimal crease memory | Handles repeated folding well but slightly stiffer in heavier GSM |
| Surface Finish | Smooth film finish | Textured woven appearance |
| Seam Performance | Heat sealed or stitched | Heat welded or stitched with excellent seam strength |
| Typical GSM | 30–300 GSM | 70–300+ GSM |
| Available Widths | Usually wider continuous sheets | Wide rolls with customized widths |
| Printing Suitability | Better smooth surface for branding and printing | Suitable but textured surface limits print quality |
| Life in Outdoor Exposure | Excellent | Excellent, especially heavy-duty grades |
| Cost | Better value for lightweight applications | Better value for heavy-duty industrial applications |
| Texture |
|
 |
Best Applications for Tarpaulin Types
| Application | Recommended Product | Reason |
|---|---|---|
| Truck Covers | Woven Coated | Better abrasion resistance against loading/unloading |
| Long-distance Transportation | Woven Coated | Higher puncture and wear resistance |
| Construction Site Covers | Woven Coated | Better withstands rough handling and repeated use |
| Machinery Covers | Woven Coated | More durable for industrial environments |
| Steel & Metal Storage | Woven Coated | Higher mechanical strength |
| Brick & Cement Protection | Woven Coated | Better abrasion resistance |
| Warehouse Covers | Woven Coated | Longer service life |
| Agricultural Produce Covers | Cross Laminated | Lightweight and easy to deploy over large areas |
| Temporary Shelters | Cross Laminated | Excellent flexibility and portability |
| Relief Camps | Cross Laminated | Easier transportation and installation |
| Pond Covers | Cross Laminated | Lightweight with excellent waterproofing |
| Nursery & Horticulture | Cross Laminated | Easy handling and frequent repositioning |
| Camping & Outdoor Events | Cross Laminated | Lower weight and easier folding |
| Monsoon Protection | Cross Laminated | Fast deployment over irregular objects |
| Irregular Equipment Covers | Cross Laminated | Conforms better to complex shapes |
| General Household Covers | Cross Laminated | Cost-effective and lightweight |
| Industrial Heavy-Duty Covers | Woven Coated | Higher durability under continuous use |
Cross Laminated Tarpaulin is often preferred where lightweight handling, excellent flexibility, and multidirectional tear resistance are more important than maximum abrasion resistance. For agriculture, temporary shelters, relief operations, and irregular-shaped equipment, cross laminated technology offers an excellent balance between durability and ease of deployment. Buyers seeking portable, weather-resistant covers generally find cross laminated sheets to be the better choice.
Which Product Should You Choose?
Choose Cross Laminated Tarpaulin if you need:
- Lightweight material
- Easy transportation
- Better flexibility
- Covers for irregular shapes
- Temporary shelters
- Agricultural protection
- Emergency relief applications
- Large-area covering with lower weight
Choose Woven Coated Tarpaulin if you need:
- Heavy-duty industrial performance
- Truck transportation
- Construction projects
- Machinery protection
- Higher abrasion resistance
- Better puncture resistance
- Long-term outdoor exposure
- Frequent handling and reuse
Every roll is manufactured in India using American cross-lamination technology and tested through accredited Asian and American laboratories for tensile strength, tear resistance, UV degradation, and water resistance — meeting IS 14611:2016 standards. Specification sheets are backed by batch-wise lab data, not just claims.
Why International Buyers Choose Newton Exports for Cross Laminated Tarpaulin
As an export management company, Newton Exports works with certified Indian manufacturers to consolidate orders, manage quality documentation, and handle export logistics — a single point of contact from specification to shipment, backed by third-party lab reports for every batch.
Ready to see the complete range or buy Cross Laminated Tarpaulin from India now?
For inquiries or RFQs on Cross Laminated Tarpaulins,
contact Newton Exports:
