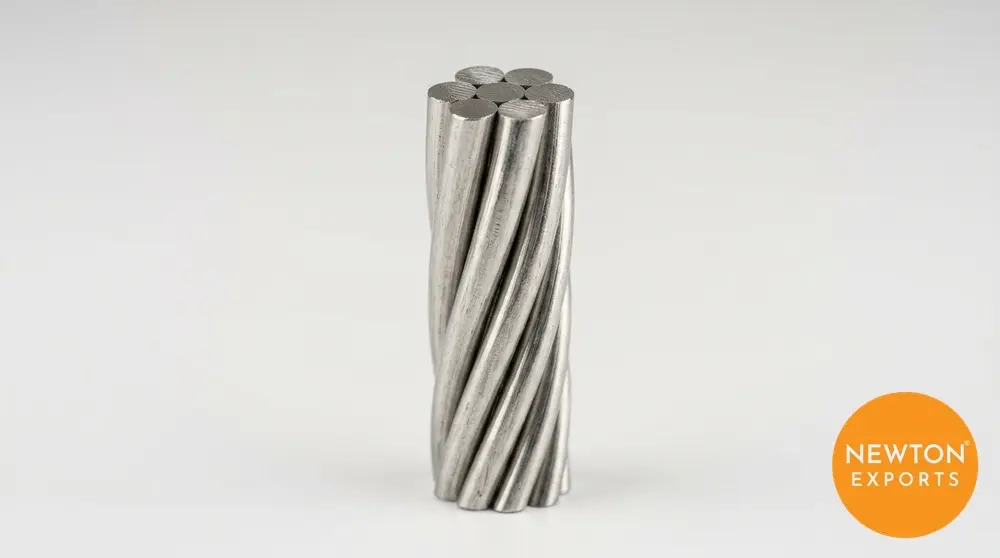

JSW Neostrands IS 14268:2022 Grade 1960 High-Tensile LRPC Strand

The JSW Neostrands IS 14268:2022 Grade 1960 High-Tensile LRPC Strand is JSW Neostrands’s answer to designs that need extra tendon capacity per strand, letting the structural engineer cut the strand count in a duct without increasing the physical diameter.

Certified to IS 14268:2022, the strand is available across breaking loads that run from 98 kN at 9.0 mm up to 294 kN at 15.7 mm thanks to the higher 1960 MPa chemistry, produced on the same automated pickling and multiblock wire drawing lines used across Neotrex’s other grades.

On site, the JSW Neostrands IS 14268:2022 Grade 1960 High-Tensile LRPC Strand is most often used in cable-stayed bridge towers, long-span box girders and any tendon layout where duct space is at a premium and a higher-grade strand reduces the number of strands per anchorage.

Quality assurance for the JSW Neostrands IS 14268:2022 Grade 1960 High-Tensile LRPC Strand runs through Neotrex Steel Limited’s BIS and ISO certification and its NABL-accredited test laboratory, produced on wire rod mills rated at 1.8 million MT per annum and validated against international schemes including DCL, ACRS and UK-CARES. Advanced sensors on the stranding lines hold temperature and tension within tight process limits throughout production.

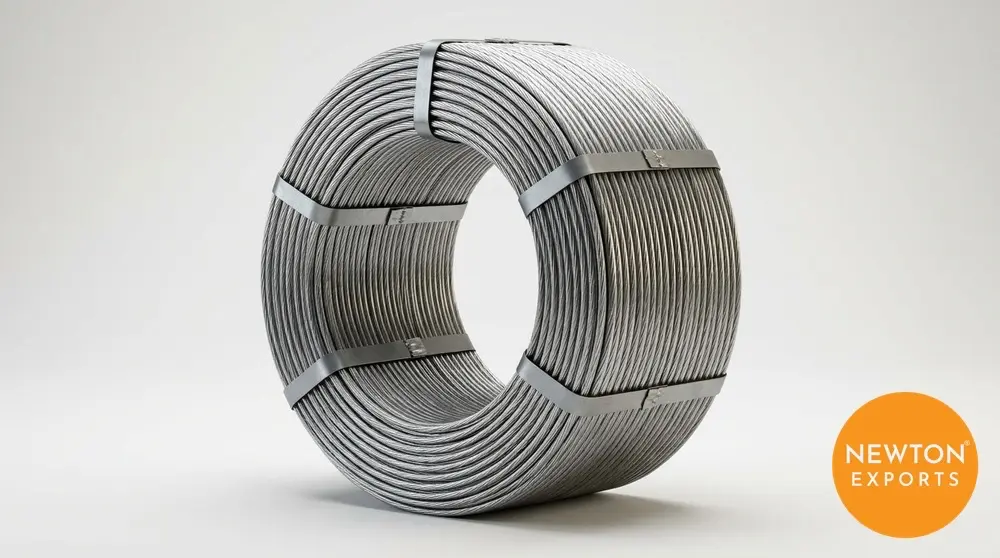

A few handling reminders apply to the JSW Neostrands IS 14268:2022 Grade 1960 High-Tensile LRPC Strand: cut only with an abrasive disc cutter or shear cutter, never with a flame or welding torch, since heat changes the steel’s microstructure and its mechanical properties. Coils should be unloaded with a crane rather than dropped off the vehicle, stored under cover on a raised platform away from direct ground or water contact, and protected with a vapour phase inhibitor if they will sit on site for an extended period before stressing.
